Wieland WT 4 E BL Multi-Tier DIN Rail Terminal Block
Wieland WT 4 E BL Multi-Tier DIN Rail Terminal Block
SKU:DIN-450c65
Securely connect wires with the Wieland WT 4 E BL Multi-Tier Terminal Block on 2 levels with 2 clamp positions each. Nominal 4mm² cross-section, blue color, and DIN rail mount.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WT 4 E BL Multi-Tier DIN Rail Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WT 4 E BL Multi-Tier DIN Rail Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

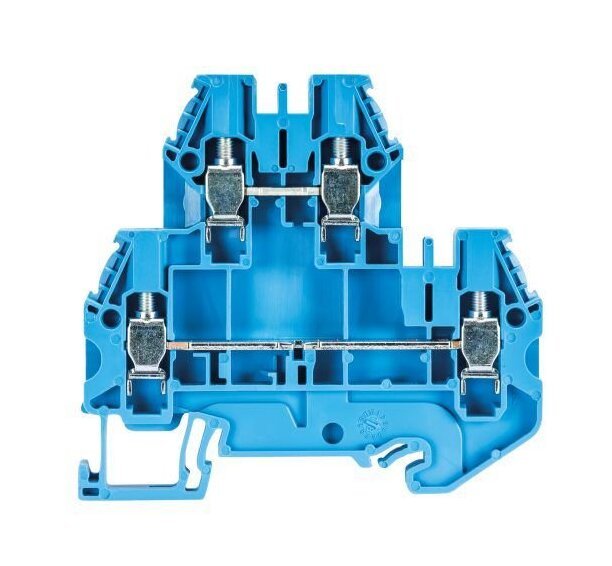

The Wieland WT 4 E BL Multi-Tier Terminal Block is a high-performance duo feed-through terminal featuring screw connections for easy mounting on TS 35 DIN rails. With a nominal cross-section of 4 mm² and a vibrant blue color, this terminal block offers two levels with two clamp positions each, ensuring secure connections. It boasts a width of 6mm, insulating housing made of PA666 material, and UL94 V0 flammability rating. With a rated current of 32 A, maximum voltage of 800 V, and compliance with RoHS and REACH-SVHC standards, this terminal block delivers reliability and safety for various applications.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
4 mm²
Connection Data Maximum Fine Stranded Connection Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Color
Blue
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
73 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
30 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
