Wieland WT 4 E GO Function Terminal Block
Wieland WT 4 E GO Function Terminal Block
Secure and efficient Wieland Function Terminal Block for easy DIN rail mounting. Nominal cross section: 4mm², Color: Orange.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WT 4 E GO Function Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WT 4 E GO Function Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

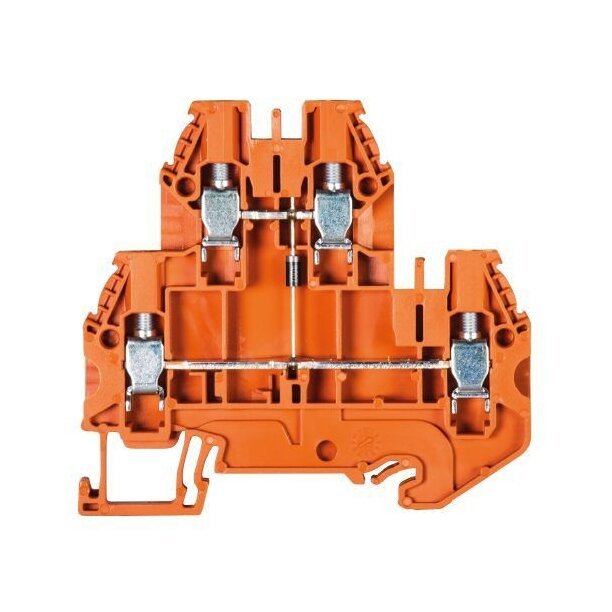

The Wieland WT 4 E GO Function Terminal Block is a high-quality terminal block designed for electrical installations. It features a screw connection for secure mounting on TS 35 DIN rails. With a nominal cross section of 4 mm² and a compact width of 6 mm in vibrant orange color, this terminal block offers reliable electrical connections. It comes with two levels and two clamp positions per level, making it versatile for various applications. The insulating housing is made of PA666 material with V0 inflammability class, ensuring safety and durability. Compliant with RoHS, REACH-SVHC, and ETIM standards.
Product Specifications
Classification Etim 30 Classification
EC000903
Classification Etim 40 Classification
EC000903
Classification Etim 50 Classification
EC000903
Classification Etim 60 Classification
27141127
Classification Rohs Conformity Status
EC000903
Classification Rohs Exceptions
EC000903
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
4 mm²
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Orange
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 4 E GO
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
Compliant
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Length
73 mm
Technical Data Pollution Degree
3
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Torque Conductor Mounting
0.5 N·m
