Wieland WT 4 E PE Earth Terminal Block
Wieland WT 4 E PE Earth Terminal Block
SKU:DIN-45d33a
Securely ground electrical connections with the Wieland WT 4 E PE Earth Terminal Block, designed for reliable performance in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WT 4 E PE Earth Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WT 4 E PE Earth Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

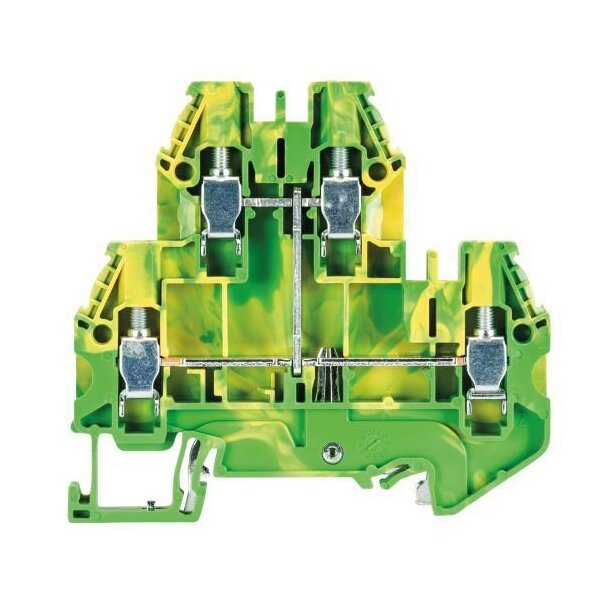

The Wieland WT 4 E PE Earth Terminal Block is a reliable solution for grounding applications, featuring screw connections for easy installation on TS 35. With a nominal cross section of 4 mm² and a width of 6 mm, this terminal block in distinctive green-yellow color ensures secure electrical connections. It offers two levels with two clamp positions each, constructed with PA666 insulating housing for durability. Meeting UL94 V0 standards for insulation, this DIN Rail Terminal Block is designed for maximum rated voltage of 800 V and rated impulse voltage of 8 kV, making it suitable for industrial and institutional environments.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Flexible Stranded Conductor Cross Sectio
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Green/Yellow
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 4 E PE
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
73 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
26-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
26-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
