Wieland WT 4 SW Feed-Through Terminal Block - Black DIN Rail Terminal Block
Wieland WT 4 SW Feed-Through Terminal Block - Black DIN Rail Terminal Block
SKU:DIN-c496bc
Secure electrical connections with Wieland WT 4 SW Feed-Through Terminal Block for TS 35 DIN Rails. Rated 32A/1000V.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WT 4 SW Feed-Through Terminal Block - Black DIN Rail Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WT 4 SW Feed-Through Terminal Block - Black DIN Rail Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

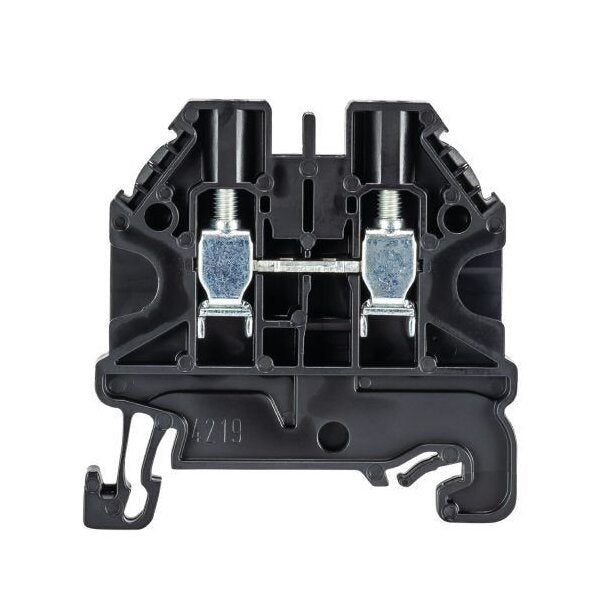

The Wieland WT 4 SW Feed-Through Terminal Block is designed for efficient electrical installations on TS 35 DIN Rails. With a 4 mm² nominal cross-section and a maximum rated voltage of 1000 V, this terminal block ensures secure connections. Its screw connections and PA666 insulating housing provide reliability, while meeting UL94 V0 standards for insulation material flammability. This terminal block is ideal for applications requiring a 32 A rated current and 8 kV rated impulse voltage.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
4
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.5
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Black
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 4 SW
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes

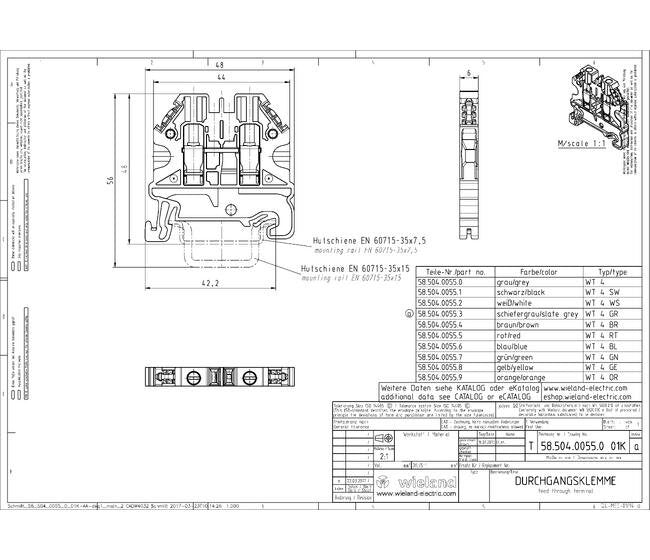

Technical Data Height
48 mm
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
26-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
26-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
6 mm
