Wieland WT 4 TKM DIN Rail Knife Disconnect Terminal Block
Wieland WT 4 TKM DIN Rail Knife Disconnect Terminal Block
SKU:DIN-bf5aa9
Wieland WT4 TKM Knife Disconnect Terminal Block: Secure screw connections, DIN Rail mount, V0 inflammability, ideal for electrical installations.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Wieland WT 4 TKM DIN Rail Knife Disconnect Terminal Block
$19.99
Quantity: 1
Claim Your Seller Account
Wieland WT 4 TKM DIN Rail Knife Disconnect Terminal Block
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

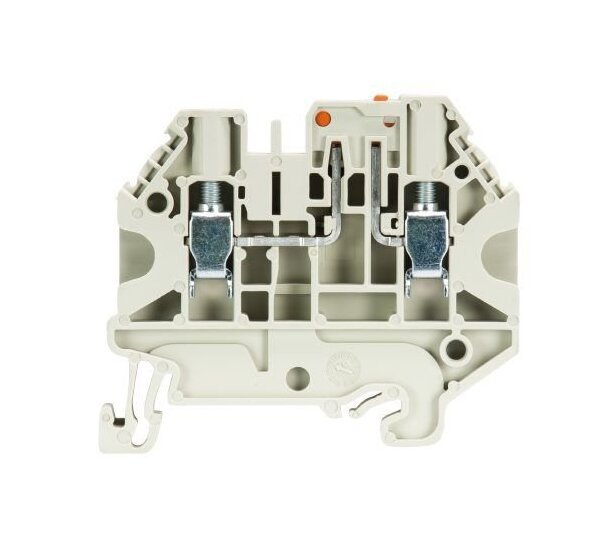

The Wieland WT 4 TKM Knife Disconnect Terminal Block is a high-quality solution designed for electrical installations requiring reliable connection capabilities. With a nominal cross-section of 4mm², rated current of 24A, and maximum rated voltage of 500V, this terminal block offers secure screw connections suitable for various conductor types. Its DIN rail mounting and insulating PA666 housing ensure easy installation and durability. Meeting V0 inflammability standards according to UL94, this gray terminal block is a top-tier choice for efficient and safe electrical connections.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Flexible Stranded Conductor Cross Sectio
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 4 TKM
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
56 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
26-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
26-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
16 A
Technical Data Ulcsa Factory Wiring Current
16 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
