Wieland WT 6 PE Earth Terminal Block for DIN Rail Mounting
Wieland WT 6 PE Earth Terminal Block for DIN Rail Mounting
SKU:DIN-b59e29
Dependable Wieland earth terminal block with 6 mm² cross section for secure DIN rail mountings. Compliant with RoHS & REACH-SVHC.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland WT 6 PE Earth Terminal Block for DIN Rail Mounting
$12.99
Quantity: 1
Claim Your Seller Account
Wieland WT 6 PE Earth Terminal Block for DIN Rail Mounting
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

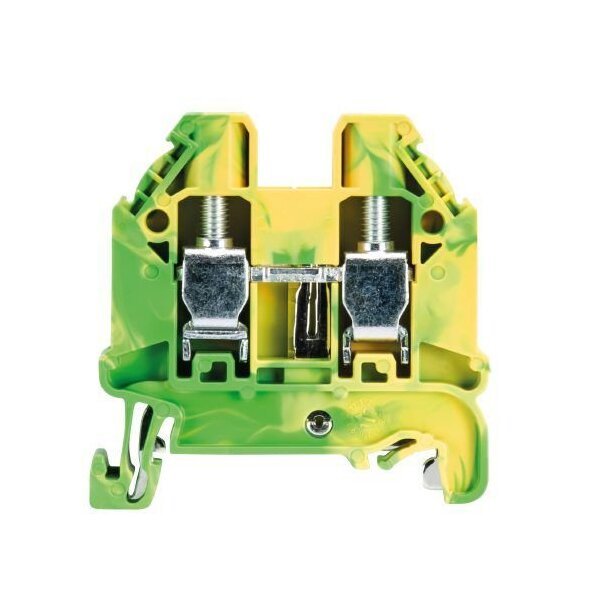

The Wieland WT 6 PE Earth Terminal Block is an essential component for electrical installations, featuring a nominal cross section of 6 mm². Designed with a green-yellow color for easy identification, this terminal block offers a secure screw connection and can be mounted on a TS 35 DIN rail. With a width of 8 mm and insulating housing made of PA666 material, this terminal block ensures reliable grounding. It complies with various standards including RoHS and REACH-SVHC, making it a trusted choice for both industrial and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Flexible Stranded Conductor Cross Sectio
6 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Torque Conductor Mounting
1.2 N·m
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Green/Yellow
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 6 PE
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-8 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
