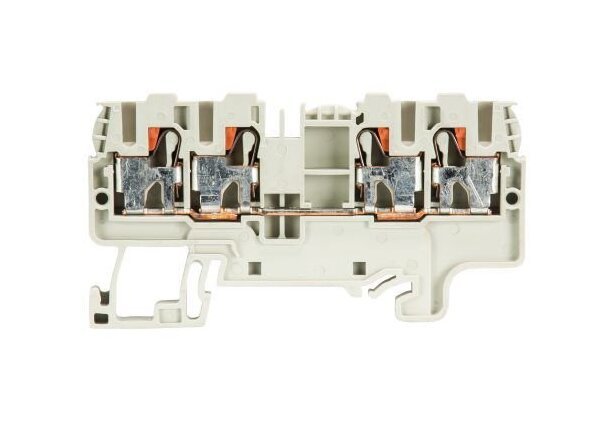

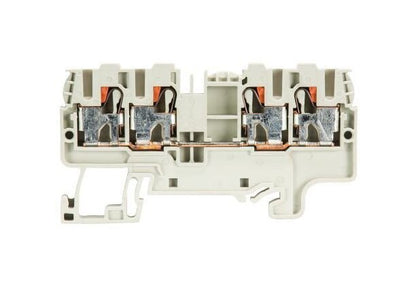

The Wieland WTP 2,5/4 D2/2 Feed-Through Terminal Block is a high-quality DIN rail terminal block designed for reliable electrical connections in industrial settings. With a nominal cross-section of 4mm², it offers a rated current of 32A and a maximum rated voltage of 800V, ensuring efficient power distribution. The push-in connection feature and compact design make installation on TS 35 quick and easy. This terminal block meets RoHS and REACH-SVHC conformity standards, providing peace of mind regarding environmental regulations.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Plug-In Connection
Connection Data Connection Type 2
Plug-In Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
4
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Maximum Stranded Cross Section
4 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.2
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Minimum Stranded Cross Section
0.2 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WTP 2,5/4 D2/2
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
4
General Width Grid Dimension
5 mm
Note Note
Remark to rated voltage in use with IVE WKF 2,5-... rated voltage 630 V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes

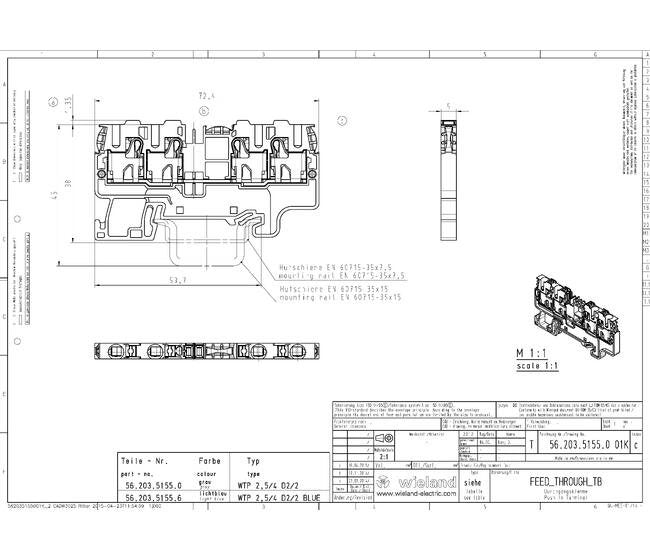

Technical Data Length
72 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
