Wieland WTP 2.5/4 PE Earth Terminal Block
Wieland WTP 2.5/4 PE Earth Terminal Block
SKU:DIN-3ac2b8
Secure Wieland WTP 2.5/4 PE Earth Terminal Block for reliable grounding on DIN rails. Suitable for high-voltage applications. RoHS & REACH-SVHC compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WTP 2.5/4 PE Earth Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WTP 2.5/4 PE Earth Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

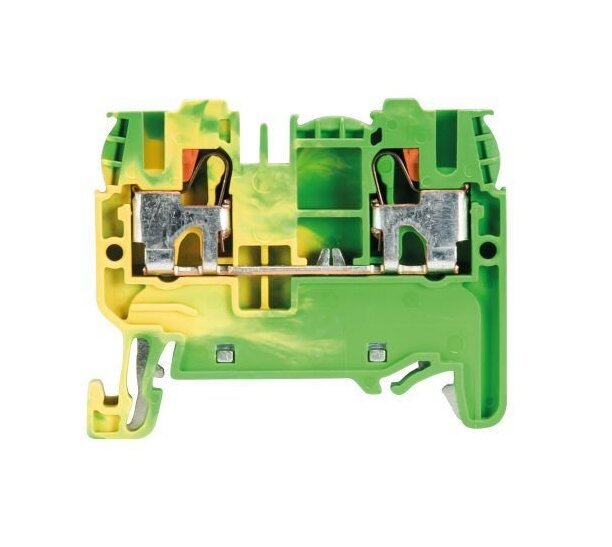

The Wieland WTP 2.5/4 PE Earth Terminal Block is a reliable grounding solution designed for easy mounting on TS 35 DIN rails. Featuring a nominal cross-section of 4mm² and a robust green-yellow color, this terminal block ensures secure connections with its plug-in connection types. With a maximum rated voltage of 800V and compliance with RoHS and REACH-SVHC standards, this terminal block is ideal for both consumer and institutional applications requiring a high degree of safety and reliability.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Plug-In Connection
Connection Data Connection Type 2
Plug-In Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Flexible Stranded Conductor Cross Sectio
4 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Maximum Stranded Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Flexible Stranded Conductor Cross Sectio
0.2 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Minimum Stranded Cross Section
0.2 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Green/Yellow
General Insulating Housing
V0
General Model
WTP 2,5/4 PE
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
5
General Number Of Levels
2
General Width Grid Dimension
PA666 mm
Note Remark To Maximum Rated Voltage
In use with IVE WKF 2.5-... rated voltage 630 V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Height
38 mm
Technical Data Length
47 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
5 mm
