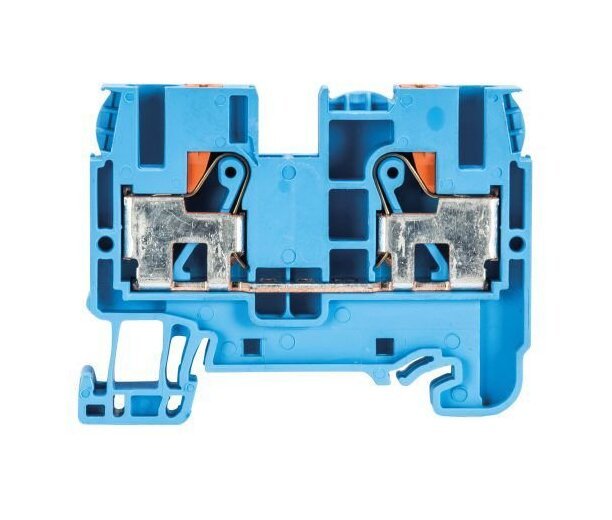

Wieland WTP 6/10 BL Feed-Through Terminal Block
Wieland WTP 6/10 BL Feed-Through Terminal Block
SKU:DIN-6f56df
High-quality Wieland WTP 6/10 BL Feed-Through Terminal Block for secure and efficient electrical connections on TS 35 rails.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WTP 6/10 BL Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WTP 6/10 BL Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WTP 6/10 BL Feed-Through Terminal Block is a high-quality DIN rail terminal block designed for secure and efficient electrical connections. With a nominal cross-section of 10 mm² and a rated current of 57 A, this terminal block is ideal for demanding industrial applications. Its push-in connection feature facilitates quick and easy installation on TS 35 rails. The terminal block's blue color, V0 inflammability rating, and compliance with RoHS and REACH-SVHC standards make it a reliable and environmentally conscious choice.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Plug-In Connection
Connection Data Connection Type 2
Plug-In Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
10
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
10 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.2
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Minimum Stranded Cross Section
0.2 mm²
Connection Data Wire Strip Length
15 mm
General Brands
Wieland
General Color
Blue
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WTP 6/10 BL
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Width Grid Dimension
8 mm
Note Note
Remark to rated voltage in use with IVE WKFN 6-... rated voltage 800 V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
58 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
57 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
12-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
10-8 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
41 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
