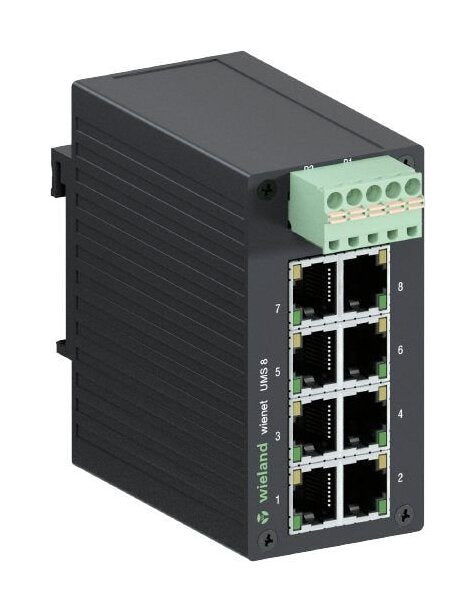

Wienet UMS8 Managed IP Switch
Wienet UMS8 Managed IP Switch
SKU:IPS-61eb29
Wieland Wienet UMS8 Managed IP Switch: 8x RJ45 ports, compact design, IEEE 802.3 compliant, ideal for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wienet UMS8 Managed IP Switch
$129.99
Quantity: 1
Claim Your Seller Account
Wienet UMS8 Managed IP Switch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wienet UMS8 Managed IP Switch by Wieland is a reliable networking solution designed for both consumer and institutional use. With RoHS certification and a sturdy metal housing with IP30 protection class, it ensures durability in various environments. Featuring 8x RJ45 10/100 Mbps ports and IEEE 802.3 standards compliance, this switch supports full/half duplex communication. It is compact (45.3 x 90 x 90.5 mm) and lightweight (270g), making it ideal for DIN rail mounting in industrial setups.
Product Specifications
Classification Eclass 81 Classification
19170106
Classification Etim 40 Classification
EC000734
Classification Etim 50 Classification
EC000734
Classification Etim 60 Classification
EC000734
Classification Etim 70 Classification
EC000734
Dimensions Approximate Weight
270 g
Dimensions Dimensions W X H X D
45.3 x 90 x 90.5 mm
General 10 Gigabit Ethernet
No
General Brands
Wieland
General Degree Of Protection Ip
IP50
General Diagnosis Display
Light Emitting Diode (LED)
General Diagnostic Leds
Data | Data rate | Link status | Power
General Ethernet
Yes
General Fast Ethernet
Yes
General Gigabit Ethernet
No
General Manageable
No
General Model
Wienet UMS8
General Number Of 100 Mbps St Ports
0
General Number Of Ports 100 Mbps Sc
0
General Power Over Ethernet
No
General Rohs Certification
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Note
Subject to technical modifications
Supply Circuit Maximum Operating Voltage
30 V
Supply Circuit Minimum Operating Voltage
9 V
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data 10100 Mbps Ports
8x RJ45
Technical Data Voltage Type
Direct Current (DC)
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
48 V
Technical Features Maximum Power Consumption
5 W
Technical Features Minimum Operating Direct Current Dc Voltage
9 V
Technical Features Redundant Power Supply
2 Power Inputs
