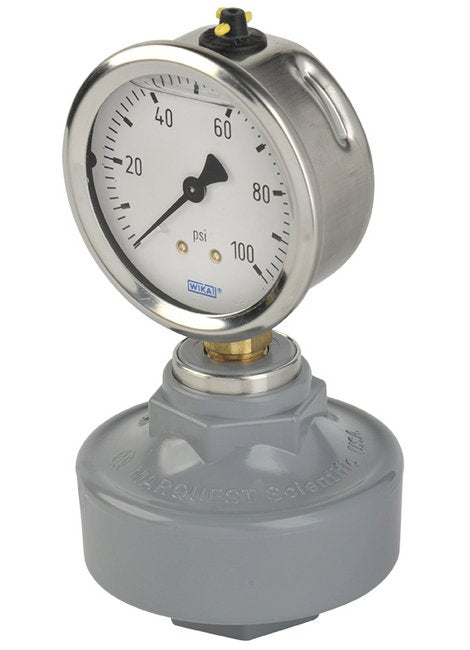

Wika SS/Brss 213.53 Liquid Filled Gauge with CPVC Isolator
Wika SS/Brss 213.53 Liquid Filled Gauge with CPVC Isolator
SKU:GAU-bff5b5
Protect sensitive instruments with precision using Wika SS/Brss 213.53 Liquid Filled Gauge & CPVC Isolator.
Regular price
$264.50
Regular price
Sale price
$264.50
Unit price
per
Initiate Order
Wika SS/Brss 213.53 Liquid Filled Gauge with CPVC Isolator
$264.50
Quantity: 1
Claim Your Seller Account
Wika SS/Brss 213.53 Liquid Filled Gauge with CPVC Isolator
$264.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure sensing instrument protection with the Wika SS/Brss 213.53 Gauge, featuring a CPVC Body and PTFE Diaphragm. The TUFF GUARD Gauge Isolator offers total isolation, accurate pressure transmission, and low maintenance. With a reinforced stainless brass instrument connection, self-venting design, and field-serviceable parts, this isolator ensures reliable performance in diverse applications.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-30 PSI, SS, Brass
Specifications List Price
264.5 USD
Specifications Materials
CPVC, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
