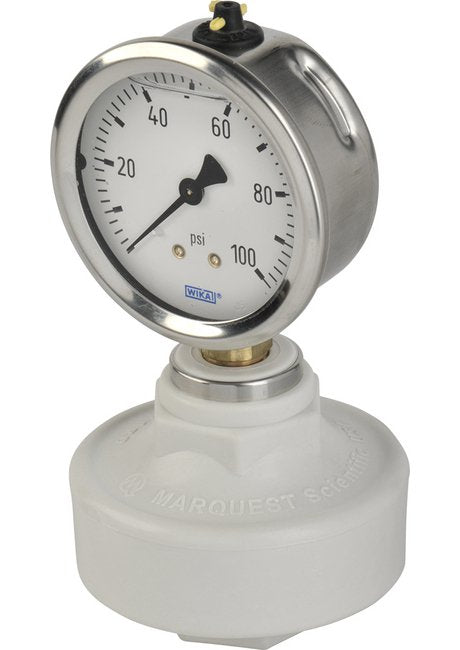

Wika TUFF GUARD Gauge Isolator with PTFE Diaphragm & Stainless Brass 2.5" Gauge
Wika TUFF GUARD Gauge Isolator with PTFE Diaphragm & Stainless Brass 2.5" Gauge
SKU:GAU-2ac4db
Reliable Wika TUFF GUARD Gauge Isolator with PTFE Diaphragm & Stainless Brass 2.5" Gauge for accurate pressure transmission & instrument protection.
Regular price
$215.99
Regular price
Sale price
$215.99
Unit price
per
Initiate Order
Wika TUFF GUARD Gauge Isolator with PTFE Diaphragm & Stainless Brass 2.5" Gauge
$215.99
Quantity: 1
Claim Your Seller Account
Wika TUFF GUARD Gauge Isolator with PTFE Diaphragm & Stainless Brass 2.5" Gauge
$215.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wika TUFF GUARD Gauge Isolator features a robust Polypro body with a durable PTFE diaphragm, designed to protect and isolate pressure sensing instruments effectively. With an impermeable diaphragm ensuring accurate pressure transmission and stainless steel reinforced connections, this isolator guarantees reliable performance. Its low profile design eliminates dead volume, while the spherical design ensures optimum pressure containment. Easy to install and maintain, this isolator is a cost-effective solution that meets industry standards for chemical resistance and purity, making it ideal for institutional and government procurement needs.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-100 PSI, SS, Brass
Specifications List Price
230.95 USD
Specifications Materials
PP, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
