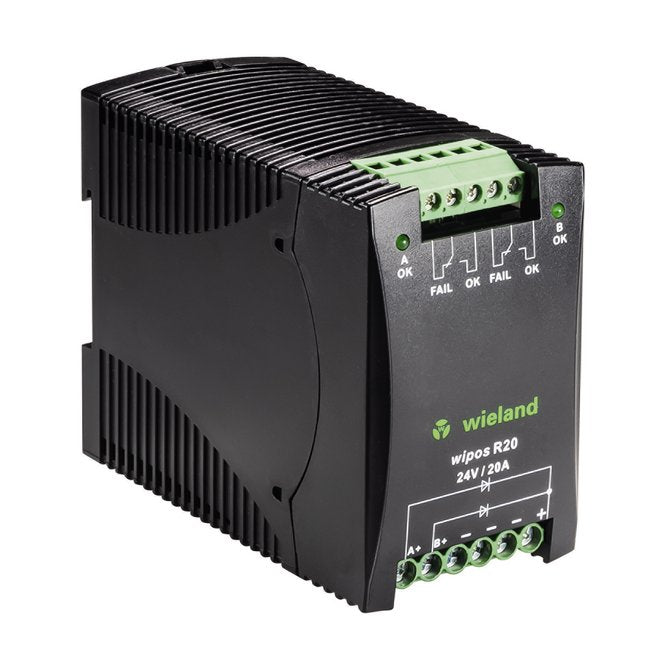

The WIPOS R20 Redundancy Module ensures seamless power supply continuity by decoupling outputs of power supplies. With Wieland's renowned reliability, this module features dual inputs, direct current isolating output voltage, and IP20 protection. It meets stringent technical standards like EN 55022 Class B and EN60950-1 for safety. With an output voltage of 24V and current of 20A, this module is compact, lightweight, and designed for easy installation.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

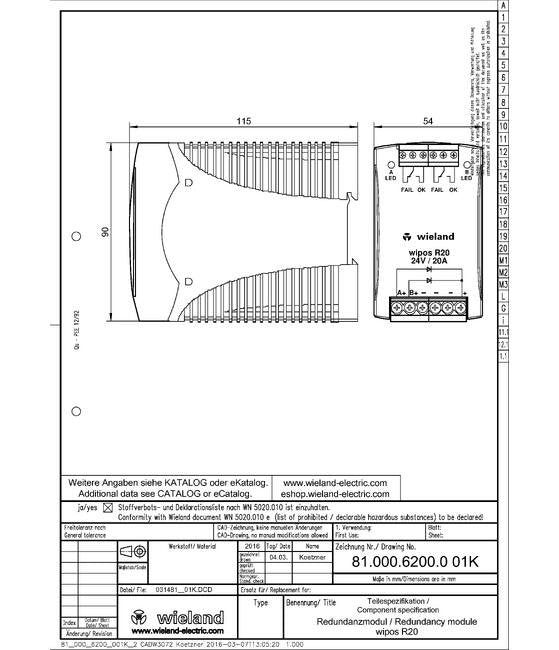

Dimensions Depth
114 mm
Dimensions Height
90 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
210 g
Dimensions Width
54 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Housing Material
Policarbonato
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-25 ºC
General Minimum Operating Temperature
-25 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
WIPOS R20
General Modular Version
No
General Mounting Typewall Mounting
No
General Pollution Degree
2
General Rail Mounting Possible
Yes
Input Maximum Direct Current Dc Input Voltage
28 V
Input Maximum Input Current
20 A
Input Minimum Direct Current Dc Input Voltage
21 V
Output Output Current
20 A
Output Output Voltage
24 V
Output Type Of Output Voltage
Direct Current (DC)
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Approvals
UL 508 Listed | UL60950-1 Recognized
Technical Data Ce Norm
EN 55022 Class B, EN55024, EN61204-3,EN61000-4-2, -3, -4, -6, -8
Technical Data Cohesive Resistance Inputoutput
100 mΩ
Technical Data Connector Cross Section Input
0.2 x 2.5 mm² | 24-12 AWG
Technical Data Connector Cross Section Output
0.2 x 2.5 mm² | 24-12 AWG
Technical Data Direct Current Dc Isolating Output Voltage
100 V
Technical Data Further Terminals
A+ (Input voltage A), B+ (Input voltage B), FAIL A / OK A (Relay switching output A, changeover contact) FAIL B / OK B (Relay switching output B, changeover contact)
