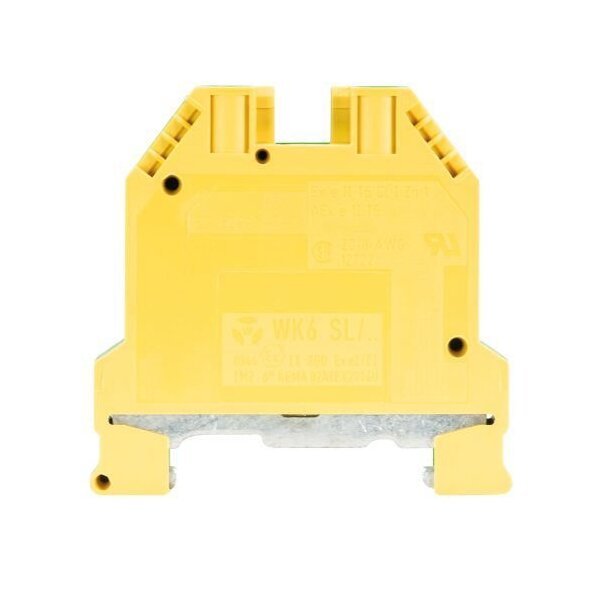

WK 6 SL Earth Terminal Block - DIN Rail Grounding Terminal with Screw Connection
WK 6 SL Earth Terminal Block - DIN Rail Grounding Terminal with Screw Connection
SKU:DIN-d9795e
High-quality WK 6 SL Earth Terminal Block for secure grounding. Nominal cross section of 6 mm², green/yellow.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
WK 6 SL Earth Terminal Block - DIN Rail Grounding Terminal with Screw Connection
$14.99
Quantity: 1
Claim Your Seller Account
WK 6 SL Earth Terminal Block - DIN Rail Grounding Terminal with Screw Connection
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The WK 6 SL Earth Terminal Block is a high-quality DIN rail terminal block designed for secure grounding applications. With a nominal cross section of 6 mm², this terminal block features a green/yellow color for easy identification. It comes with one level and two clamp positions per level, ensuring efficient wiring. The insulating housing is constructed from PA666, offering exceptional durability. Meeting international standards, this terminal block is explosion-tested ("Ex. e"), making it suitable for various industrial environments.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
1.2 N·m
Connection Data Torque Rail Mounting
1.2 N·m
Connection Data Wire Strip Length
12 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 6 SL
General Mounting Method
TS35
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Length
54 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-8 AWG
