The World Series Chassis Mount Power Transformers from Triad International feature European style split bobbins for enhanced safety and reduced interwinding capacitance. Available in sizes ranging from 5 VA to 56 VA with 115 V / 230 V 50/60 Hz primary windings, these transformers offer 3,500 V isolation between primary and secondary, and are designed with a 6 mm creepage distance. The construction eliminates the need for electrostatic shielding, ensuring reliable performance in various applications.
Product Specifications
Note 0

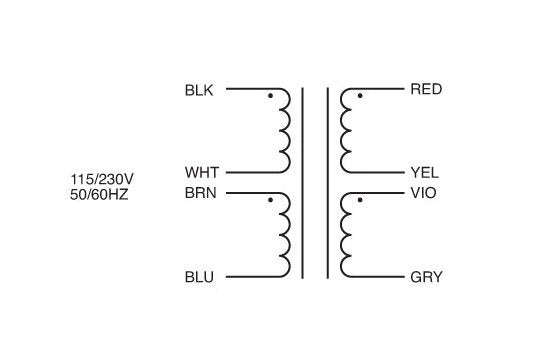

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
1 3/4 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/4 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
14.00 V | 0.700 A
Specifications Secondary Series Connected
28.0 V | 0.350 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
