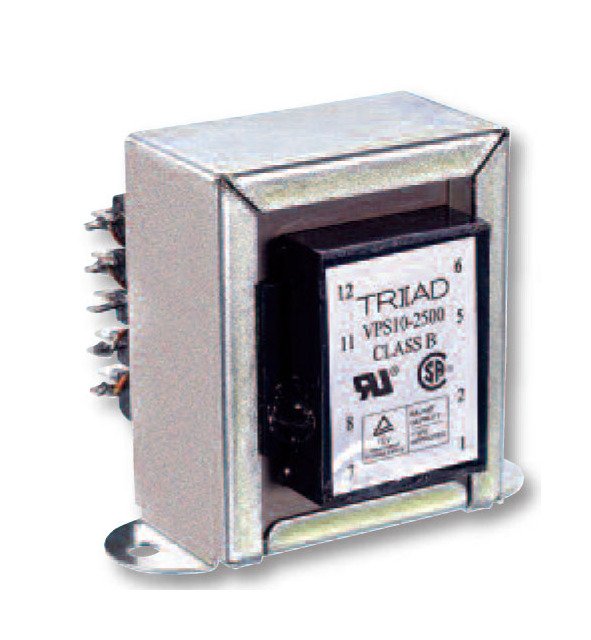

World Series Chassis Mount Quick-Connect Power Transformers
World Series Chassis Mount Quick-Connect Power Transformers
SKU:POW-2009ed
Versatile World Series Power Transformers with 'quick connect' terminations, meeting diverse U.S. and International standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
World Series Chassis Mount Quick-Connect Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
World Series Chassis Mount Quick-Connect Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The World Series Chassis Mount Quick-Connect Power Transformers are meticulously crafted to meet a variety of U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in an insulating shroud made of UL approved high-temperature material, these transformers eliminate the need for electrostatic shielding due to minimal capacitance between coils. With both primary and secondary electrically isolated, these transformers range from 25 VA to 175 VA, offering convenient 'quick connect' terminations for easy installation and use. Hi-pot tested at 4,000 VRMS, these transformers provide versatility with both primary and secondary coils configurable in either series or parallel, complying with Class 2/3 UL File: E65390 standards.
Product Specifications
Note 0
Class 2/3 UL File: E65390

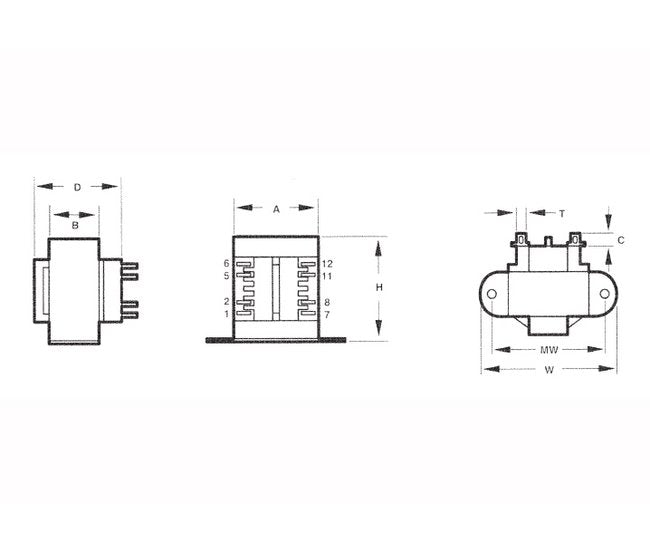

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
10.0 V at 4.4 A
Specifications Secondary Series
20.0 V CT at 2.2 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
