World Series Power Transformers
World Series Power Transformers
SKU:POW-6843f7
Meet U.S. & International standards. Dual bobbin design, UL approved material, electrically isolated primary & secondary, sizes from 25 VA to 175 VA.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
World Series Power Transformers
$149.99
Quantity: 1
Claim Your Seller Account
World Series Power Transformers
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

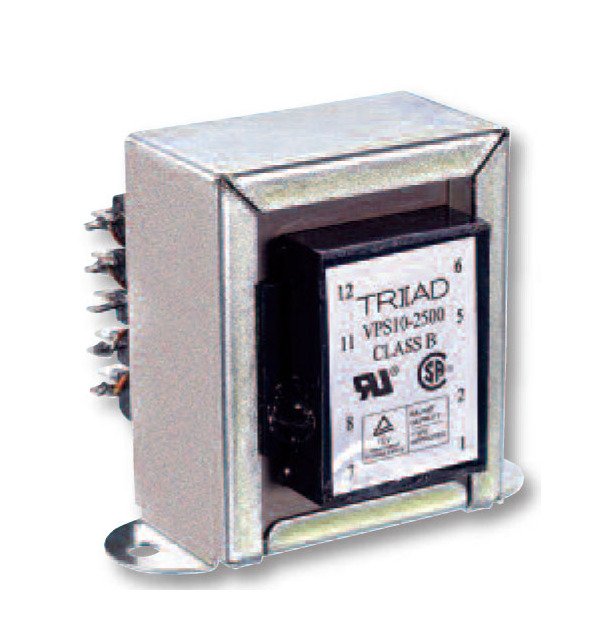

The Chassis Mount Quick-Connect World Series™ Power Transformers are expertly crafted to meet U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design within an insulating shroud and built with UL approved high temperature material, these transformers eliminate the need for electrostatic shielding. With primary and secondary electric isolation, and sizes from 25 VA to 175 VA, these transformers offer convenience and reliability for a range of applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

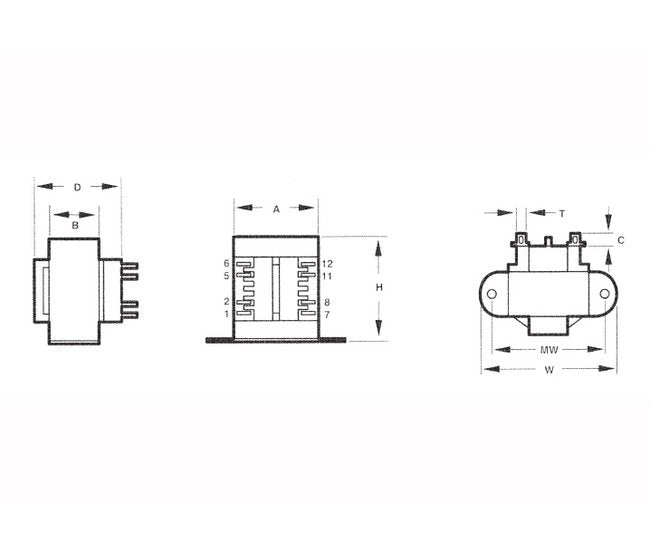

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
10.0 V at 2.5 A
Specifications Secondary Series
20.0 V CT at 1.25 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
