World Series Power Transformers

World Series Power Transformers

POW-6ac72e

Enhance safety and efficiency with World Series™ Power Transformers for reliable performance in various power applications.

$65.99
$65.99
Sale

Initiate Order

World Series Power Transformers

World Series Power Transformers

$65.99

Quantity: 1

Claim Your Seller Account

World Series Power Transformers

World Series Power Transformers

$65.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The World Series™ Chassis Mount Leaded Power Transformers by Triad International are engineered with European style split bobbins for enhanced safety and reduced interwinding capacitance. Available in various sizes ranging from 5 VA to 56 VA, these transformers feature 115 V / 230 V 50/60 Hz Primary windings, 3,500 V isolation between primary and secondary, and 6 mm creepage distance primary to secondary. With versatile options for series or parallel connections, these transformers deliver reliable performance and efficiency in diverse power applications, meeting international safety standards.

Product Specifications

Note 0

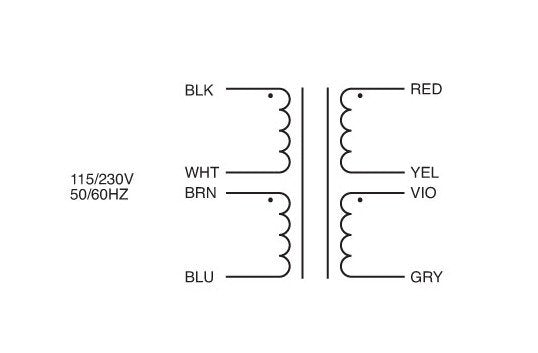

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/8 in
Specifications Electrical Rating
25 V·A
Specifications Height H
1 15/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
13.40 V | 1.860 A
Specifications Secondary Series Connected
26.8 V | 0.930 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
3 1/4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
