World Series Quick-Connect Power Transformers
World Series Quick-Connect Power Transformers
SKU:POW-ba0738
Meet demanding U.S. and International standards with our efficient and reliable World Series Quick-Connect Power Transformers.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
World Series Quick-Connect Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
World Series Quick-Connect Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

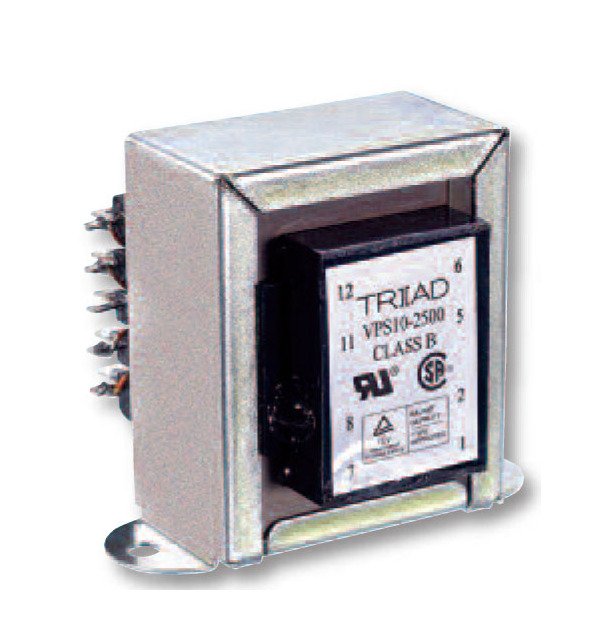

The World Series Quick-Connect Power Transformers are meticulously crafted to meet stringent U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in high-temperature insulating material, these transformers eliminate the need for electrostatic shielding. With primary and secondary coils electrically isolated and quick-connect terminations, these chassis mount transformers ensure seamless integration and electrical isolation. Available in sizes ranging from 25 VA to 175 VA, these transformers guarantee optimal performance and reliability in power applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

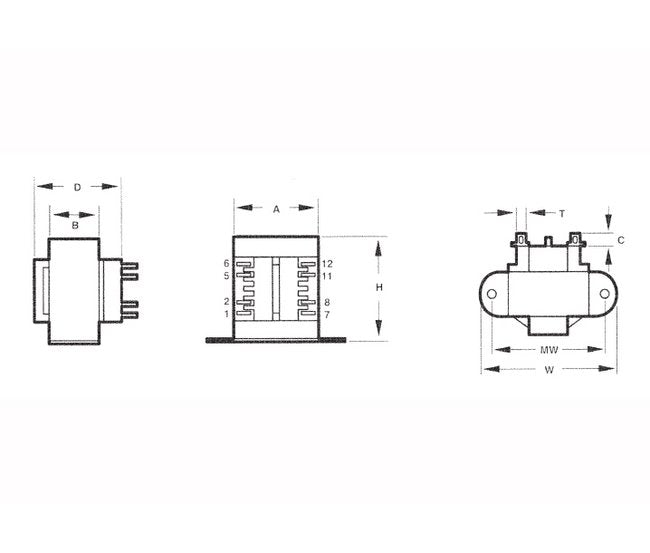

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
115.0 V at 0.22 A
Specifications Secondary Series
230.0 V CT at 0.11 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
