World Series⢠Chassis Mount Power Transformer
World Series⢠Chassis Mount Power Transformer
SKU:POW-7ec55a
High-performance chassis mount power transformer meeting top industry standards. Sizes ranging from 25 VA to 175 VA with convenient 'quick connect' terminations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
World Series⢠Chassis Mount Power Transformer
$59.99
Quantity: 1
Claim Your Seller Account
World Series⢠Chassis Mount Power Transformer
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

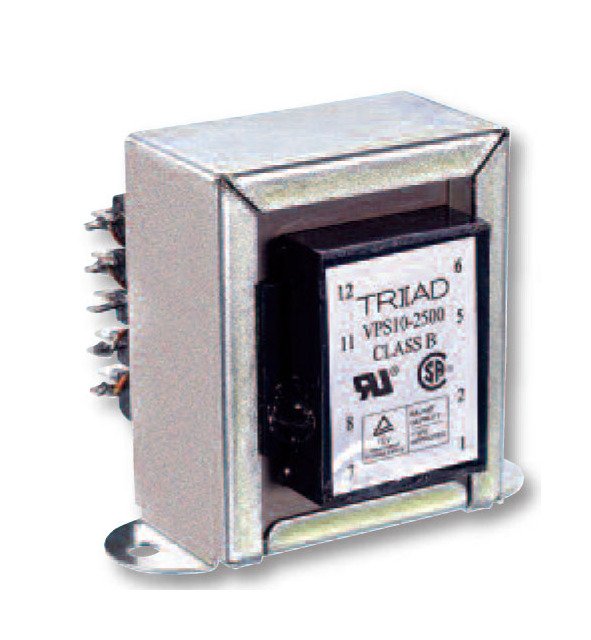

The World Series⢠Chassis Mount Power Transformer is meticulously crafted to meet stringent U.S. and International standards such as CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design within an insulating shroud made of UL approved high-temperature material, this transformer eliminates the need for electrostatic shielding due to minimal capacitance between coils. With primary and secondary electric isolation and sizes ranging from 25 VA to 175 VA, these transformers offer optimal performance. The 'quick connect' terminations ensure convenient installation, making them ideal for a wide range of power applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

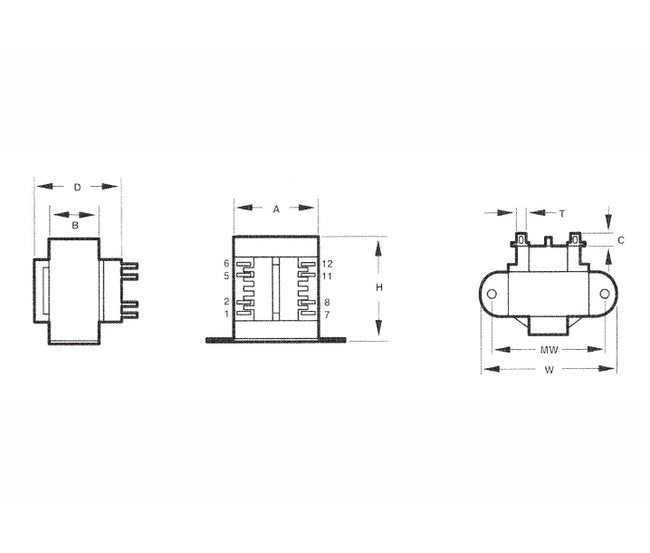

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 3.6 A
Specifications Secondary Series
24.0 V CT at 1.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
