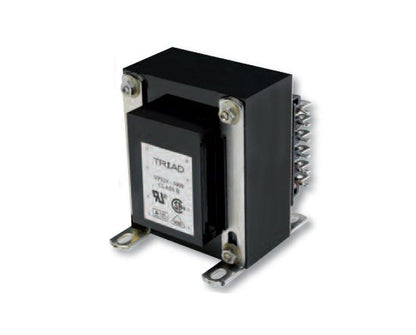

World Series⢠Power Transformers - Chassis Mount Quick-Connect
World Series⢠Power Transformers - Chassis Mount Quick-Connect
SKU:POW-b1727e
Meet demanding standards with our Chassis Mount Quick-Connect World Series⢠Power Transformers. Dual bobbin design, high temperature material, easy installation, and compliance with top certifications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
World Series⢠Power Transformers - Chassis Mount Quick-Connect
$89.99
Quantity: 1
Claim Your Seller Account
World Series⢠Power Transformers - Chassis Mount Quick-Connect
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick-Connect World Series⢠Power Transformers are meticulously engineered to meet stringent U.S. and international standards, including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design enclosed in a high-temperature insulating shroud, these transformers eliminate the need for electrostatic shielding. They provide electrical isolation between primary and secondary coils, along with the core. Available from 25 VA to 175 VA, these transformers boast 'quick connect' terminations for effortless installation and operation. Ideal for applications demanding reliability and compliance.
Product Specifications
Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 6.6 A
Specifications Secondary Series
24.0 V CT at 3.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
