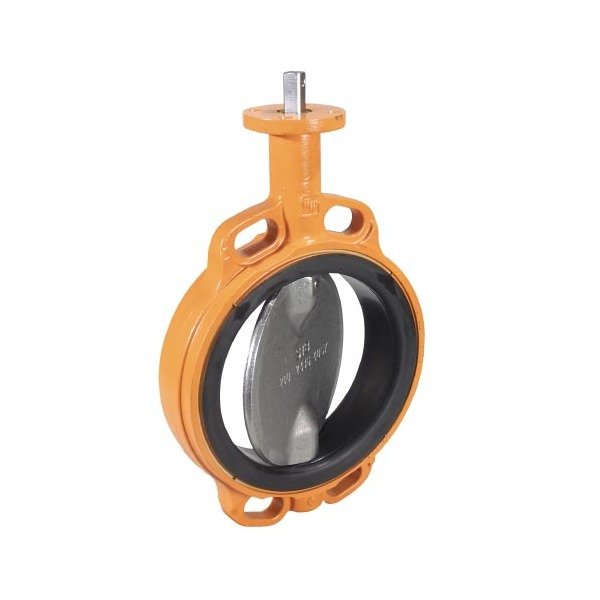

Wouter Witzel Eurovalve EVBLS Semi-Lug Long Neck Butterfly Valve

Name: Wouter Witzel Eurovalve EVBLS Semi-Lug Long Neck Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-caee20
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-caee20

Versatile Wouter Witzel Eurovalve EVBLS - Semi-Lug Long Neck Butterfly Valve, compliant with ISO standards. DN50 - 200, 16 Bar design pressure, multiple materials & actuation options.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Eurovalve EVBLS Semi-Lug Long Neck Butterfly Valve is a versatile solution designed to meet ISO standards for face-to-face dimensions and flange connections. This valve, available in sizes DN50 - 200 (2" - 8"), offers a design pressure of 16 Bar and various actuation options including manual, electric, pneumatic, and hydraulic. With materials ranging from ductile iron to stainless steel, bronze liners, and a semi-lug wafer short type with long neck for insulation, this valve ensures reliable performance as an isolating or regulating valve. It complies with ISO 5208 leakage rates and has received approvals from WRC, LRS, BV, and RMRS.

Product Specifications

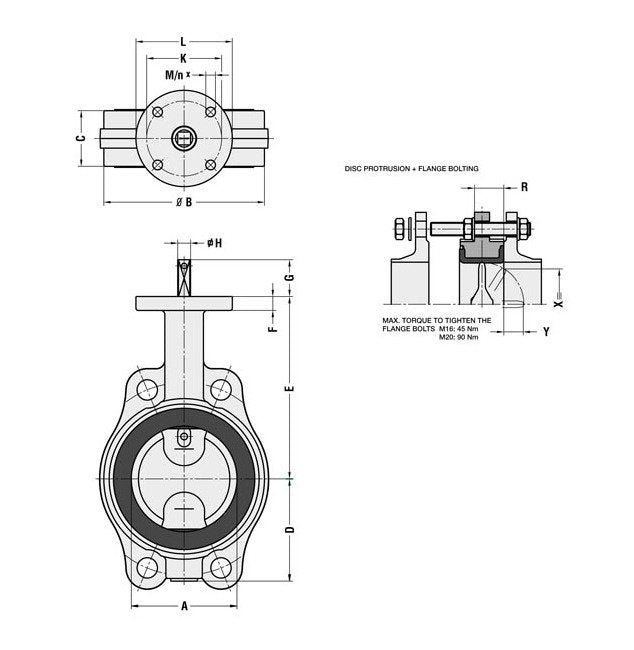

Specifications A

150 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

BV | LRS | RMRS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

210 mm

Specifications C

56 mm

Specifications D

133 mm

Specifications E

224 mm

Specifications F

14 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

16 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

39 mm

Specifications Size

DN150 - 6"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

10.0 kg

Specifications X

140 mm

Specifications Y

47 mm
