Wouter Witzel Eurovalve EVBLS Semi Lug Valve

Name: Wouter Witzel Eurovalve EVBLS Semi Lug Valve
Brand: World Wide Metric, Inc.
SKU: VAL-26ce2e
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-26ce2e

Premium Wouter Witzel Eurovalve EVBLS Semi Lug Valve - ISO Compliant | Bi-Directional Tight Shut-Off

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

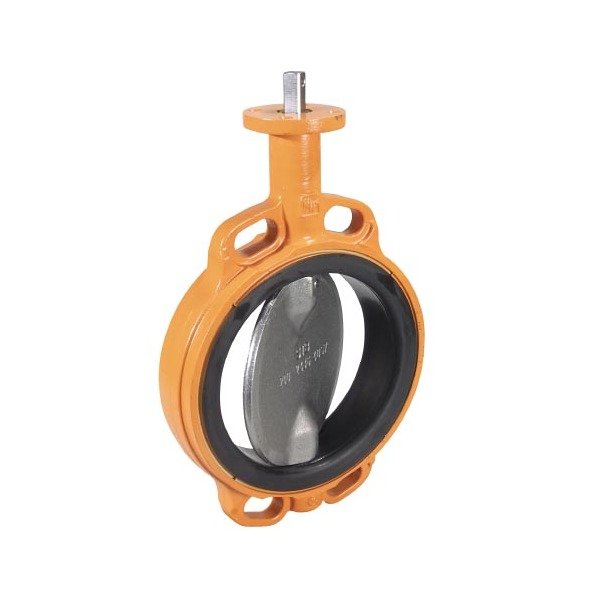

The Wouter Witzel Eurovalve EVBLS Semi Lug Valve with Long Neck combines superior functionality with robust construction. Designed to ISO standards, this valve offers precise control with options for manual, electric, pneumatic, or hydraulic actuation. Its diverse material options provide exceptional durability and compatibility with various systems. The semi-lug wafer type with long neck ensures efficient insulation, while its bi-directional tight shut-off capability meets ISO 5208 Rate A standards, making it ideal for both isolating and regulating valve applications.

Product Specifications

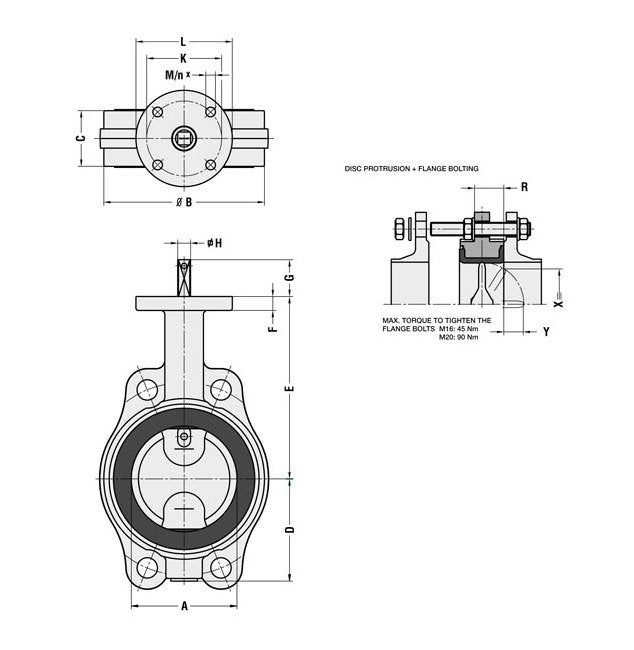

Specifications A

200 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

BV | LRS | RMRS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

262 mm

Specifications C

60 mm

Specifications D

158 mm

Specifications E

248 mm

Specifications F

14 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

16 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

44 mm

Specifications Size

DN200 - 8"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

15.0 kg

Specifications X

191 mm

Specifications Y

70 mm
