Wouter Witzel Eurovalve EVFL Gear Operated Cast Iron Flanged Butterfly Valve
Wouter Witzel Eurovalve EVFL Gear Operated Cast Iron Flanged Butterfly Valve
SKU:VAL-081eb0
Premium Wouter Witzel Eurovalve EVFL Gear Cast Iron Flanged Butterfly Valve, DN350, PN6, DIN Compliant
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve EVFL Gear Operated Cast Iron Flanged Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve EVFL Gear Operated Cast Iron Flanged Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

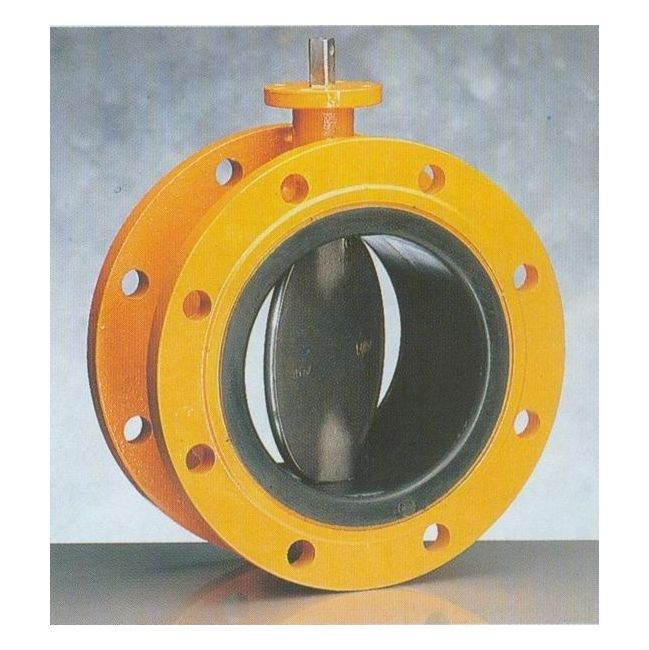

The Wouter Witzel Eurovalve EVFL Gear Operated Cast Iron Flanged Long Type DIN Butterfly Valve is a robust and reliable solution for industrial fluid control. With a size of DN350 (14") and PN6 pressure rating, this valve excels as an isolating and regulating valve. Its durable construction, including GG25 Cast Iron body, Stainless Steel shaft, and EPDM liner, ensures longevity and efficient operation. This valve complies with DIN standards, suitable for various applications in government and institutional sectors requiring high performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

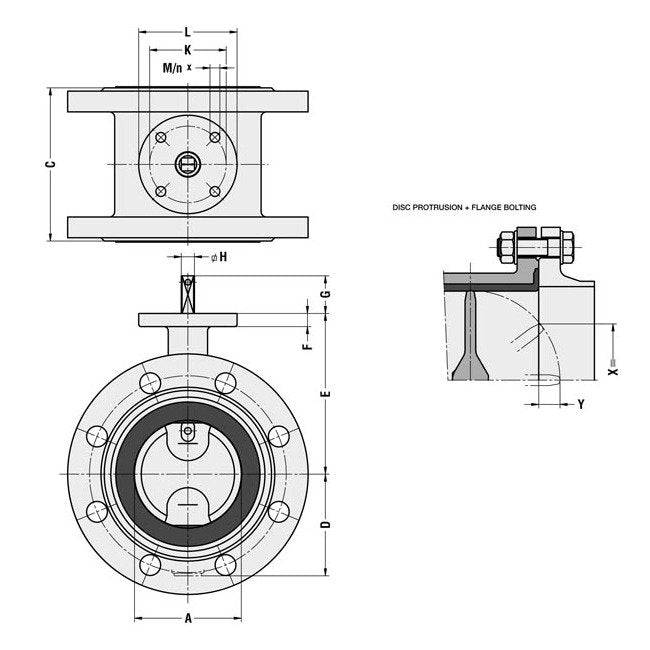

Specifications A
336 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
290 mm
Specifications D
256 mm
Specifications E
315 mm
Specifications F
15 mm
Specifications Flange Connections
PN 6
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F14
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 6
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN350 - 14" | 350 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
120.0 kg
Specifications X
170 mm
Specifications Y
23 mm
