Wouter Witzel Eurovalve EVFS DN600 Ductile Iron Butterfly Valve
Wouter Witzel Eurovalve EVFS DN600 Ductile Iron Butterfly Valve
SKU:VAL-f33ede
Boost control and reliability with the EVFS DN600 Ductile Iron Butterfly Valve. Durable, Precise, Certified. Perfect for varied applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve EVFS DN600 Ductile Iron Butterfly Valve
$1,899.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve EVFS DN600 Ductile Iron Butterfly Valve
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid control system with the Wouter Witzel Eurovalve EVFS DN600 Ductile Iron Butterfly Valve. This bare shafted valve combines durability with precise regulation, featuring a Ductile Iron body, Stainless Steel shaft, and EPDM liner. With approvals from ABS, DNV, and more, it guarantees reliability. This valve, conforming to DIN standards, is ideal for isolating and regulating applications in diverse settings, from industrial facilities to municipal projects.

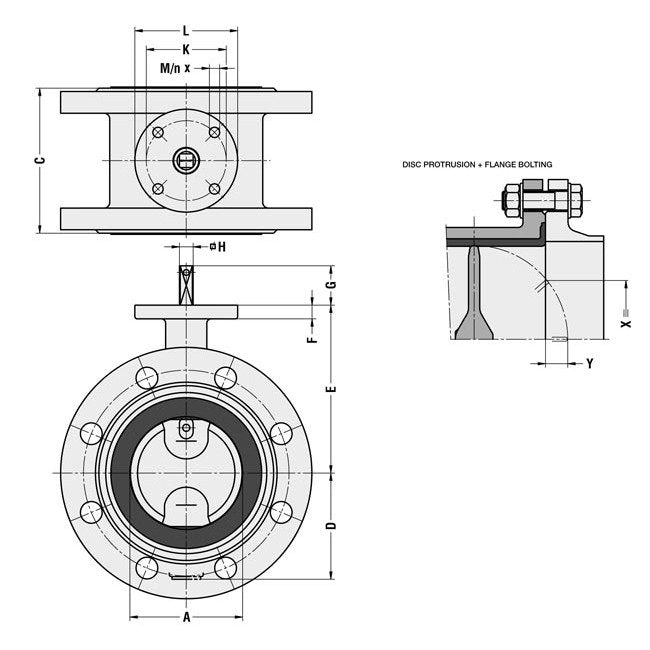

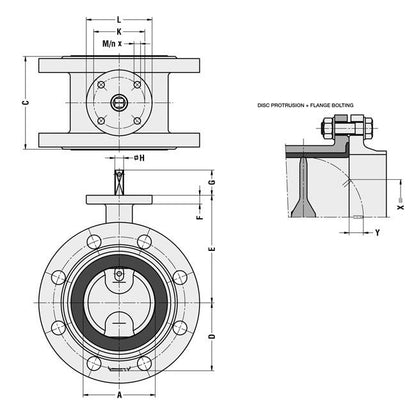

Product Specifications
Specifications A
586 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
267 mm
Specifications D
426 mm
Specifications E
510 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10
Specifications G
50 mm
Specifications H Diameter
40 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN600 - 24" | 600 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
300.0 kg
Specifications X
522 mm
Specifications Y
160 mm
