Wouter Witzel Eurovalve Series EVBLS Semi Lug Long Neck Valve

Name: Wouter Witzel Eurovalve Series EVBLS Semi Lug Long Neck Valve
Brand: World Wide Metric, Inc.
SKU: VAL-09275b
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-09275b

High-performance butterfly valve with ISO compliance, versatile size range, and multiple material options for various applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

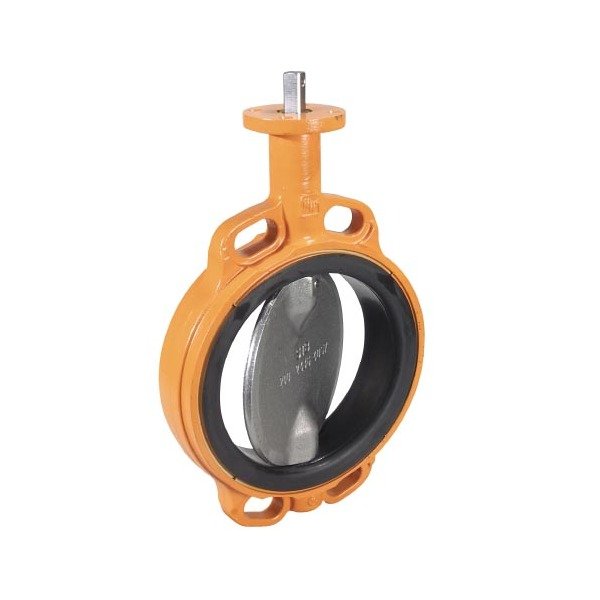

The Wouter Witzel Eurovalve Series EVBLS Semi Lug with Long Neck Valve is a high-performance concentric butterfly valve designed for durability and reliability. Compliant with ISO standards, this valve offers a flange connection suitable for DIN PN10/16 systems, ensuring a secure fit. With a size range from DN50 to 200 (2" to 8"), various actuation options, and material choices including carbon steel, stainless steel, and bronze, this valve provides versatility for different applications. Its semi-lug wafer short type with a long neck design ensures efficient insulation, while the valve function can act as an isolating or regulating valve. Endorsed by approvals from WRC, LRS, BV, and RMRS, this valve meets the highest industry standards.

Product Specifications

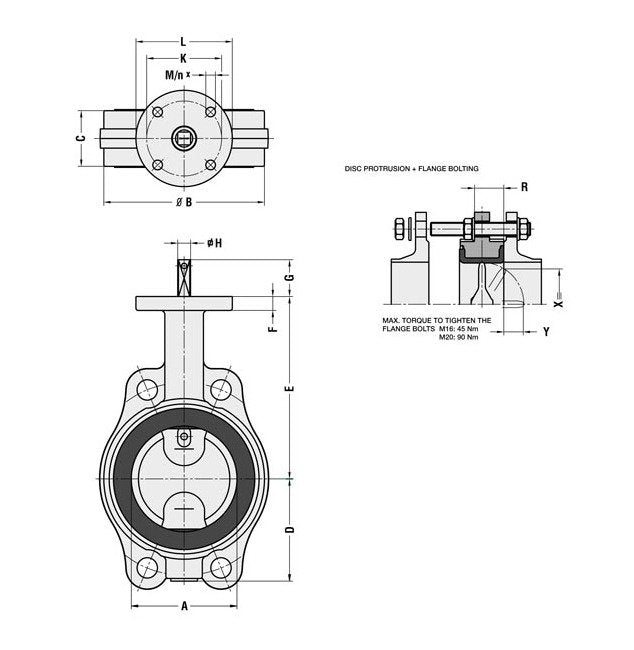

Specifications A

65 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

BV | LRS | RMRS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

115 mm

Specifications C

46 mm

Specifications D

71 mm

Specifications E

160 mm

Specifications F

12 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

10 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

32 mm

Specifications Size

DN65 - 2-1/2"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

3.9 kg

Specifications X

46 mm

Specifications Y

10 mm
