Wouter Witzel Eurovalve Series EVBLS Semi Lug Valve

Name: Wouter Witzel Eurovalve Series EVBLS Semi Lug Valve
Brand: World Wide Metric, Inc.
SKU: VAL-81af7e
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-81af7e

Enhance control and efficiency with the Wouter Witzel Eurovalve Series EVBLS Semi Lug Valve. Versatile and durable for all applications.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

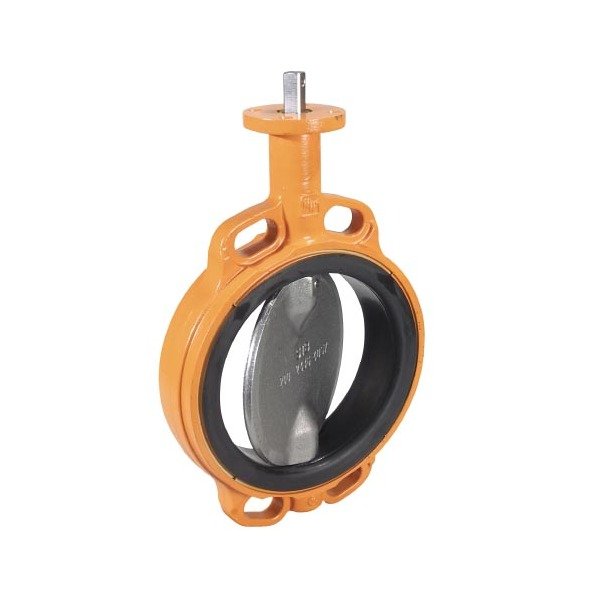

The Wouter Witzel Eurovalve Series EVBLS Semi Lug Valve with Long Neck is a high-performance butterfly valve designed for precision and durability. With a semi-lug wafer short type build featuring a long neck for insulation, this valve ensures reliable performance in isolating and regulating positions. It is equipped with a range of actuation possibilities including manual, electric, pneumatic, and hydraulic options, offering versatility for various applications. Meeting ISO standards for face-to-face dimensions, flange connections, and valve shut off pressures, this valve guarantees industry-compliant operations.

Product Specifications

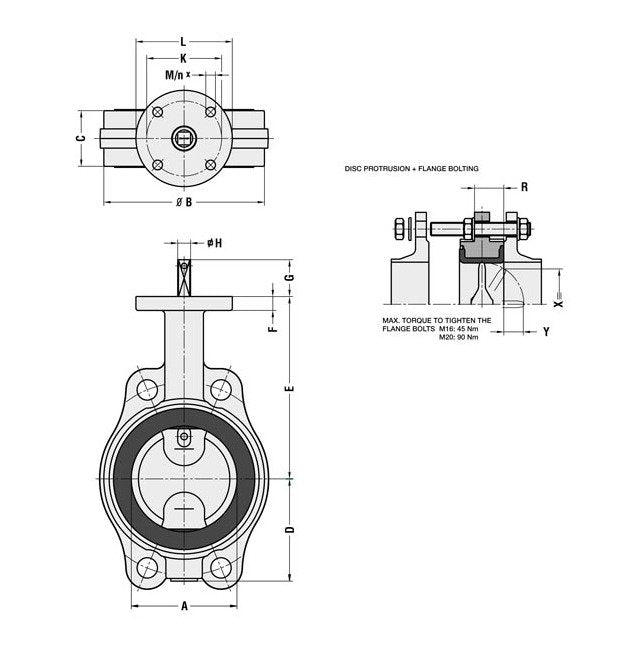

Specifications A

125 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

BV | LRS | RMRS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

182 mm

Specifications C

56 mm

Specifications D

109 mm

Specifications E

202 mm

Specifications F

12 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

12 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

39 mm

Specifications Size

DN125 - 5"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

7.5 kg

Specifications X

112 mm

Specifications Y

35 mm
