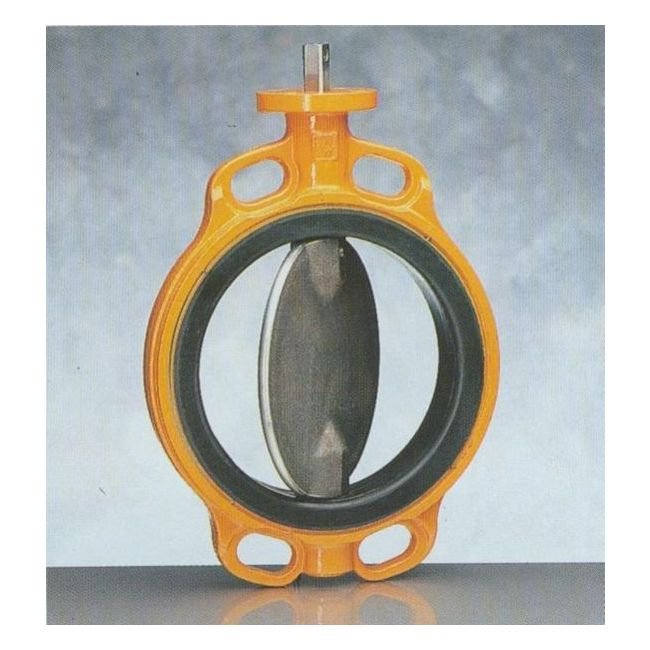

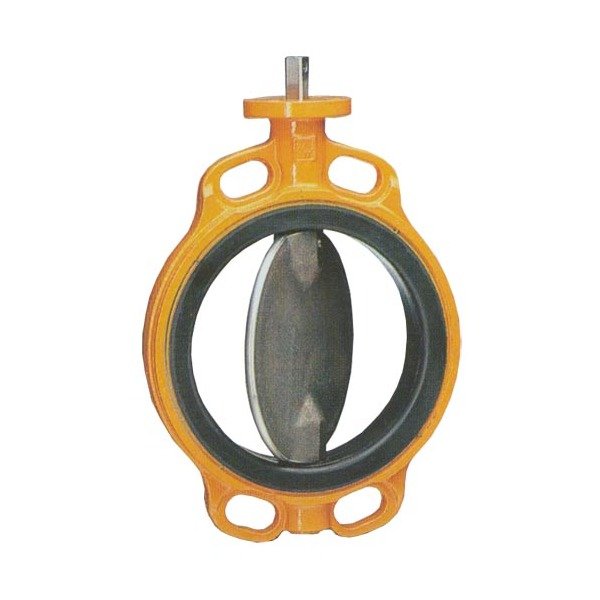

Wouter Witzel Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve
Wouter Witzel Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve
SKU:VAL-a8ecfe
Enhance your industrial operations with the Series EVBS Semi Lug Cast Iron Butterfly Valve by Wouter Witzel Eurovalve. DIN standard compliant for reliable performance.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve
$169.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior valve performance with the Series EVBS Semi Lug Cast Iron Butterfly Valve by Wouter Witzel Eurovalve. This high-quality valve, featuring a bare shaft design and DIN standard compliance, offers precise isolation and regulation functions. With a range of type approvals and a robust construction from GG25 Cast Iron, this valve ensures durability and reliability in various industrial applications. The EPDM liner and stainless steel shaft enhance its corrosion resistance and operational efficiency.
Product Specifications

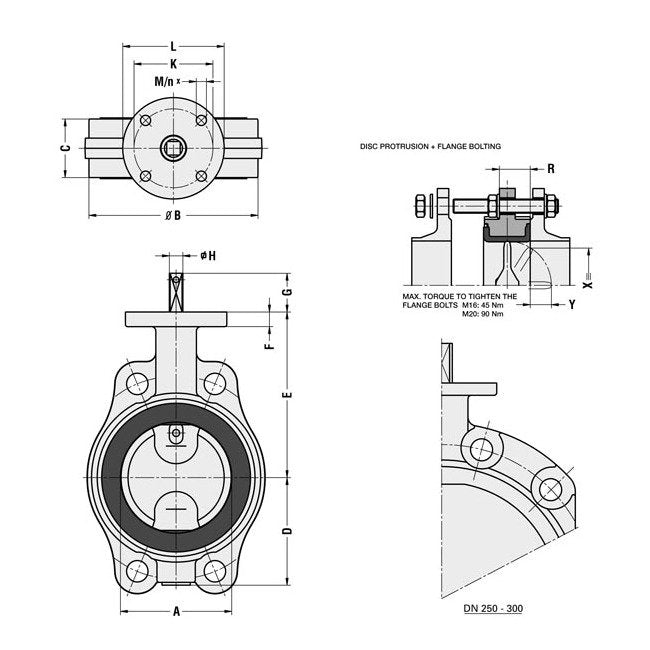

Specifications A
50 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
100 mm
Specifications C
43 mm
Specifications D
63 mm
Specifications E
118 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
10 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
30 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN50 - 2" | 50 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
2.8 kg
Specifications X
25 mm
Specifications Y
4 mm
