Wouter Witzel Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
Wouter Witzel Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
SKU:VAL-6bcd5f
Premium gear-operated cast iron butterfly valve for industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
$599.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve is a high-quality, durable valve designed for industrial applications. With a size of DN200 (8") and a pressure rating of PN16, this valve offers precise control and reliable shut-off. It features a robust cast iron body, stainless steel shaft, and EPDM liner for enhanced performance and longevity. The gear actuation ensures smooth operation, making it ideal for isolating and regulating flow in various systems. This valve meets stringent DIN standards and is available with multiple type approvals, making it a versatile and trusted choice for institutional needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

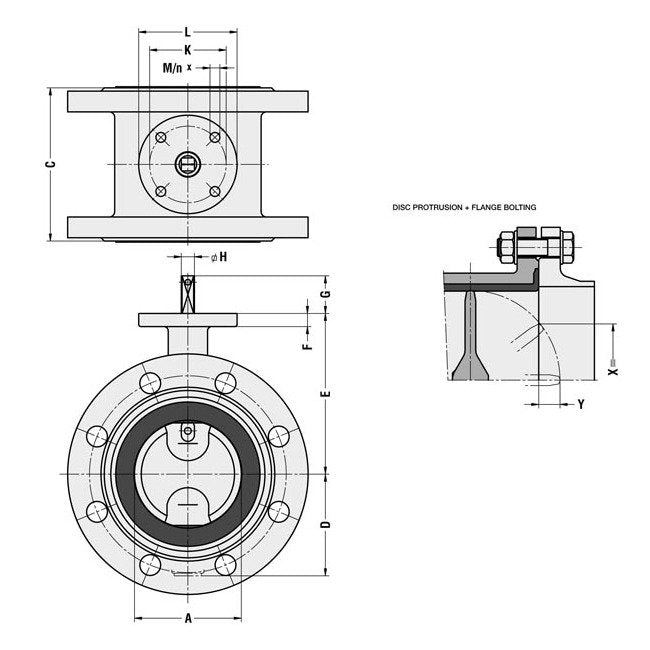

Specifications A
200 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
230 mm
Specifications D
158 mm
Specifications E
204 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F10
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 16
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN200 - 8" | 200 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
45.0 kg
