Wouter Witzel Eurovalve Series EVFS Ductile Iron Butterfly Valve
Wouter Witzel Eurovalve Series EVFS Ductile Iron Butterfly Valve
SKU:VAL-d6bf69
Premium Ductile Iron Butterfly Valve, DN250, PN16, EPDM Liner - Ideal for Isolation and Regulation.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVFS Ductile Iron Butterfly Valve
$699.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVFS Ductile Iron Butterfly Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Eurovalve Series EVFS Butterfly Valve is a robust and versatile DN250 valve, designed for applications requiring reliable isolating and regulating functions. Constructed from Ductile Iron, this valve ensures durability and efficient flow control. With PN16 flange connections and an EPDM liner, it meets stringent industry standards for performance and longevity. The bare shaft design allows for easy actuation, making it suitable for a wide range of industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

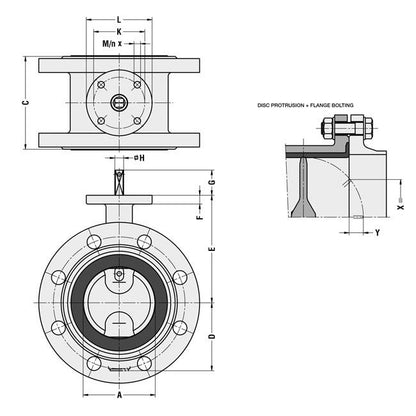

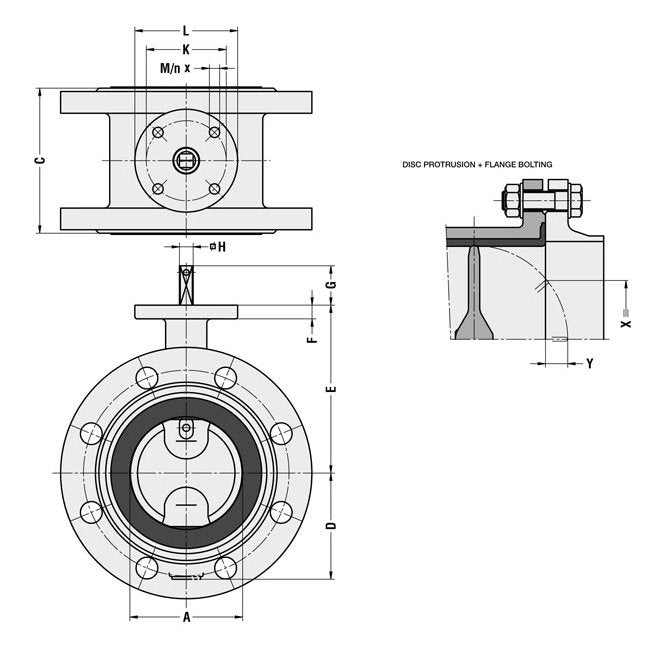

Specifications A
250 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
165 mm
Specifications D
194 mm
Specifications E
245 mm
Specifications F
15 mm
Specifications Flange Connections
PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN250 - 10" | 250 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
50.0 kg
Specifications X
188 mm
Specifications Y
43 mm
