Wouter Witzel Eurovalve Series EVS Wafer Short Butterfly Valve

Name: Wouter Witzel Eurovalve Series EVS Wafer Short Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-ba92f6
Price: 1299.99 USD
Availability: OutOfStock

SKU:VAL-ba92f6

Precision-engineered Wouter Witzel Eurovalve Series EVS Wafer Short Butterfly Valve for reliable flow control in institutional settings. Sizes DN40-1400. Manual, electric, pneumatic, hydraulic actuation options.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Eurovalve Series EVS Wafer Short Butterfly Valve is a top-quality valve designed for precise flow control and shut off. With a range of sizes from DN40 to 1400, this valve offers compatibility with various flange connections such as DIN PN, ANSI, and JIS standards. The valve is constructed with durable materials like stainless steel, carbon steel, and ductile iron, ensuring longevity and performance in diverse industrial settings. Featuring manual, electric, pneumatic, and hydraulic actuation options, this valve provides flexibility in operation. Meeting ISO and leakage rate standards, this valve guarantees bi-directional tight shut off, making it ideal for institutional and government applications.

Product Specifications

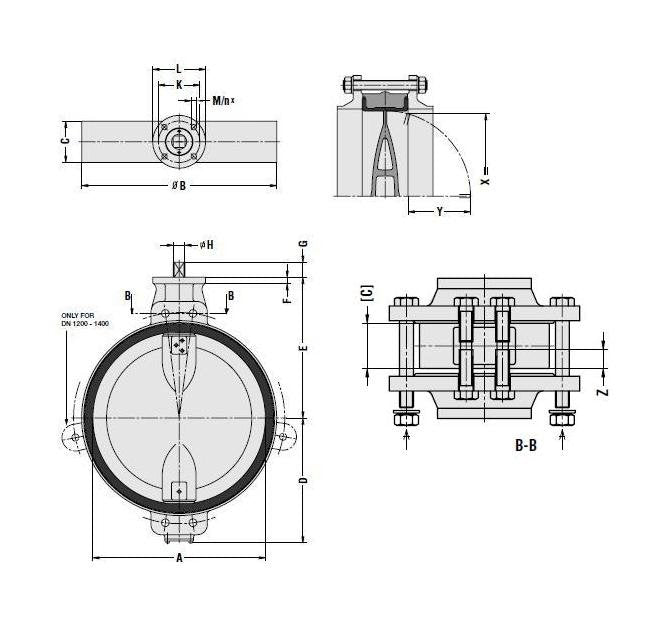

Specifications A

786 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

880 mm

Specifications C

190 mm

Specifications D

525 mm

Specifications Disc Material

Aluminum Bronze | Stainless Steel

Specifications E

610 mm

Specifications F

25 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6

Specifications G

60 mm

Specifications H Diameter

46 mm

Specifications Iso 5211

F16

Specifications K

165 mm

Specifications L

210 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

21 mm

Specifications N Number Of Holes

Specifications Size

DN800 - 32" | 800 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

345.0 kg

Specifications X

763 mm

Specifications Y

298 mm

Specifications Z At Pn 61016

Through Bolting

Wouter Witzel Eurovalve Series EVS Wafer Short Butterfly Valve
