Wouter Witzel Eurovalve Series EVS Wafer Short Valve

Name: Wouter Witzel Eurovalve Series EVS Wafer Short Valve
Brand: World Wide Metric, Inc.
SKU: VAL-5d85fb
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-5d85fb

High-performance concentric butterfly valve with versatile actuation options and robust construction materials for precise flow control in industrial applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Eurovalve Series EVS Wafer Short Valve is a high-performance concentric butterfly valve designed for precise flow control. With a variety of actuation options including manual, electric, pneumatic, and hydraulic, this valve offers versatility for different applications. The valve is constructed with robust materials such as ductile iron, cast iron, stainless steel, and bronze, ensuring durability and reliability. Meeting ISO and DIN standards, this valve provides bi-directional tight shut off, making it suitable for isolating and regulating functions in industrial settings.

Product Specifications

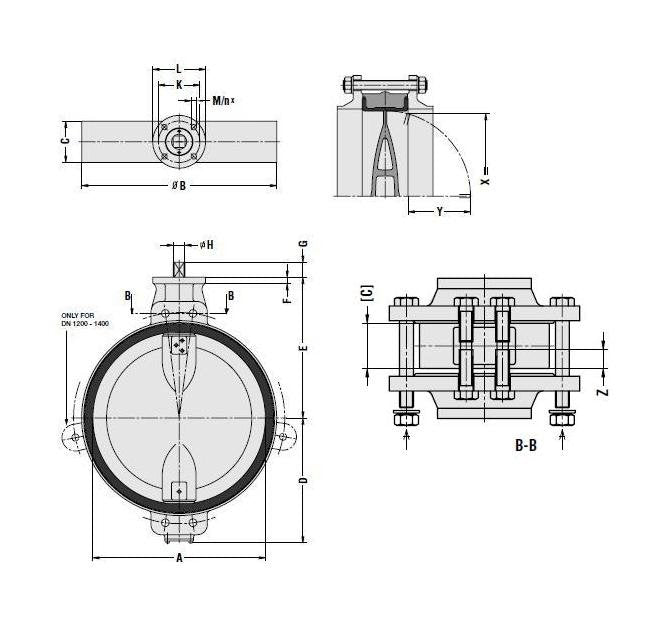

Specifications A

686 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

776 mm

Specifications C

165 mm

Specifications D

480 mm

Specifications Disc Material

Aluminum Bronze | Stainless Steel

Specifications E

560 mm

Specifications F

25 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6

Specifications G

60 mm

Specifications H Diameter

46 mm

Specifications Iso 5211

F16

Specifications K

165 mm

Specifications L

210 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

21 mm

Specifications N Number Of Holes

Specifications Size

DN700 - 28" | 700 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

295.0 kg

Specifications X

666 mm

Specifications Y

261 mm

Specifications Z At Pn 16

60 mm

Specifications Z At Pn 610

Through Bolting
