The Wouter Witzel Eurovalve Series EVS Wafer Short Valve is a high-performance concentric butterfly valve designed for critical industrial applications. With a rugged construction comprising materials like stainless steel and carbon steel, this valve ensures reliable performance under high pressures up to 16 Bar. Available in sizes ranging from DN40 to 1400, this valve features multiple actuation options including manual, electric, pneumatic, and hydraulic. The bi-directional tight shut-off capability meets ISO 5208 standards, making it suitable for isolating and regulating flow with precision.

Product Specifications

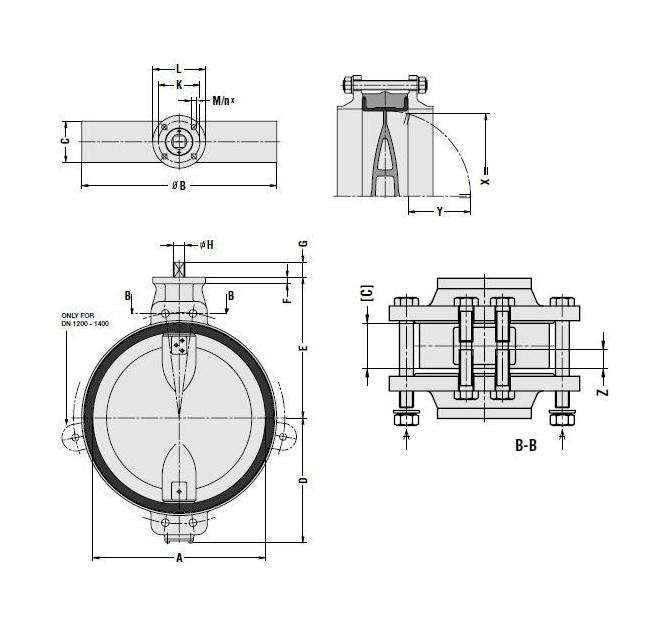

Specifications A

986 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

1085 mm

Specifications C

216 mm

Specifications D

685 mm

Specifications Disc Material

Aluminum Bronze | Stainless Steel

Specifications E

740 mm

Specifications F

30 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 18 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6

Specifications G

85 mm

Specifications H Diameter

60 mm

Specifications Iso 5211

F25 | F30

Specifications K

254 mm | 298 mm

Specifications L

350 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

17 mm | 21 mm

Specifications N Number Of Holes

Specifications Size

DN1000 - 40" | 1000 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

635.0 kg

Specifications X

973 mm

Specifications Y

390 mm

Specifications Z At Pn 10

51 mm

Specifications Z At Pn 16

58 mm

Specifications Z At Pn 6

51 mm
