Wouter Witzel Eurovalve Series EVS Wafer Short Valve

Name: Wouter Witzel Eurovalve Series EVS Wafer Short Valve
Brand: World Wide Metric, Inc.
SKU: VAL-f8d17b
Price: 2800.5 USD
Availability: OutOfStock

SKU:VAL-f8d17b

High-performance Wouter Witzel Eurovalve Series EVS Butterfly Valve for precision control and reliability. DN40 - DN1400 sizes available. Complies with ISO standards.

$2,800.50

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Eurovalve Series EVS Wafer Short Valve is a high-performance concentric butterfly valve designed for superior durability and precision. With a range of size options from DN40 to DN1400, this valve features a vulcanized rubber lining for reliable sealing. It offers various flange connections including DIN PN 6, 10, 16, ANSI 150, and JIS 5K, 10K, 16K, making it versatile for multiple applications. This valve is suitable for manual, electric, pneumatic, or hydraulic actuation and complies with ISO 5752 S-20 standards, ensuring efficient performance and long-term reliability.

Product Specifications

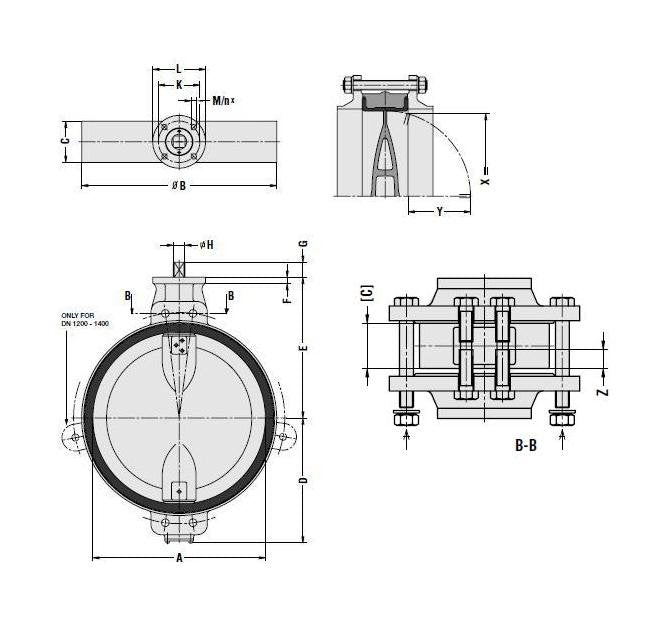

Specifications A

1386 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

1500 mm

Specifications C

250 mm

Specifications D

980 mm

Specifications Disc Material

Aluminum Bronze | Stainless Steel

Specifications E

955 mm

Specifications F

35 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 22 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6

Specifications G

90 mm | 100 mm

Specifications H Diameter

75 mm

Specifications Iso 5211

F35

Specifications K

356 mm

Specifications L

415 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

31 mm

Specifications N Number Of Holes

Specifications Size

DN1400 - 56" | 1400 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

1900.0 kg

Specifications X

1364 mm

Specifications Y

568 mm

Specifications Z At Pn 10

63 mm

Specifications Z At Pn 16

71 mm

Specifications Z At Pn 6

56 mm
