Wouter Witzel Eurovalve Series EVS Wafer Short Valve

Name: Wouter Witzel Eurovalve Series EVS Wafer Short Valve
Brand: World Wide Metric, Inc.
SKU: VAL-1d2453
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-1d2453

Precision meets reliability with the Wouter Witzel Eurovalve Series EVS Wafer Short Valve. Ideal for industrial flow control applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Eurovalve Series EVS Wafer Short Valve is a high-performance concentric butterfly valve designed for precise flow control and tight shut-off in industrial applications. With a range of actuation options including manual, electric, pneumatic, and hydraulic, this valve offers versatility and reliability. Constructed from premium materials like stainless steel, bronze, and ductile iron, this valve ensures durability and corrosion resistance. Compliant with ISO standards, it meets the requirements of government and institutional procurement processes, making it an ideal choice for critical infrastructure projects.

Product Specifications

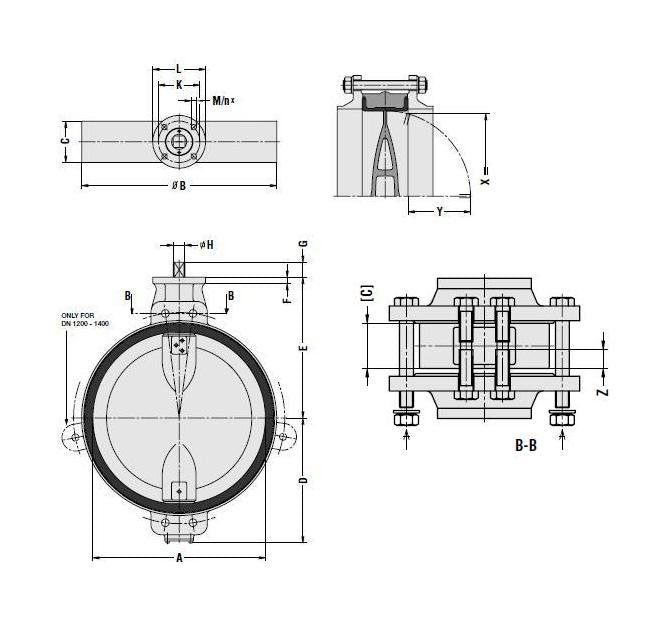

Specifications A

868 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

980 mm

Specifications C

203 mm

Specifications D

635 mm

Specifications Disc Material

Aluminum Bronze | Stainless Steel

Specifications E

690 mm

Specifications F

30 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 17 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6

Specifications G

85 mm

Specifications H Diameter

46 mm

Specifications Iso 5211

F25

Specifications K

254 mm

Specifications L

300 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

17 mm

Specifications N Number Of Holes

Specifications Size

DN900 - 36" | 900 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

475.0 kg

Specifications X

863 mm

Specifications Y

342 mm

Specifications Z At Pn 10

52 mm

Specifications Z At Pn 16

59 mm

Specifications Z At Pn 6

Through Bolting
