High-performance Series EVS Wafer Short Valve with ISO 5752 S-20 Face to Face measurement, 16 Bar pressure, ANSI 150 Flange Connections, and multiple material options.

$2,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Eurovalve Series EVS Wafer Short Valve is a high-performance concentric butterfly valve designed to meet institutional and government procurement standards. With a face-to-face measurement according to ISO 5752 S-20 and a design pressure of 16 Bar / 232 psi, this valve ensures reliable operation in demanding environments. It offers versatile actuation options including manual, electric, pneumatic, and hydraulic, along with a range of material options for the body, disc, stem, and liners, catering to various application needs. The valve's leak-tight design, flange connections compliant with ANSI 150, JIS, and DIN standards, and approvals from ABS, DNV, UL, and more make it a trusted choice for critical industrial settings.

Product Specifications

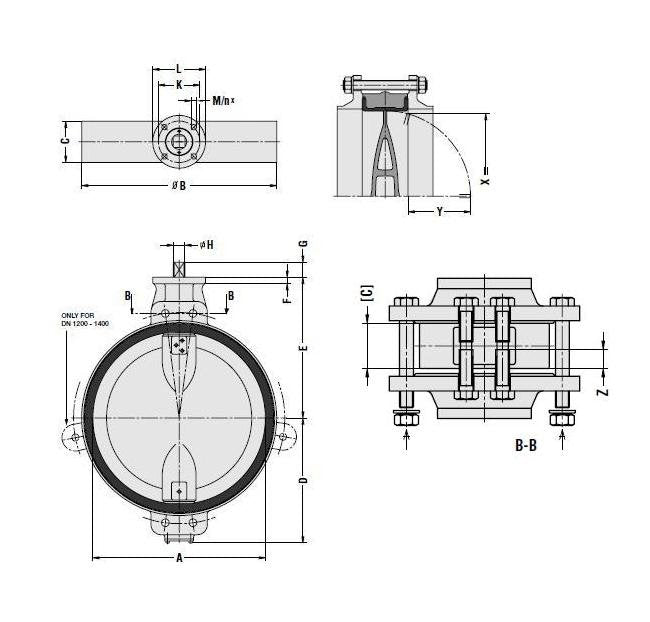

Specifications A

1168 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

1300 mm

Specifications C

254 mm

Specifications D

870 mm

Specifications Disc Material

Aluminum Bronze | Stainless Steel

Specifications E

855 mm

Specifications F

35 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 20 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6

Specifications G

90 mm

Specifications H Diameter

75 mm

Specifications Iso 5211

F30 | F35

Specifications K

298 mm | 356 mm

Specifications L

415 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

21 mm | 31 mm

Specifications N Number Of Holes

Specifications Size

DN1200 - 48" | 1200 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

1500.0 kg

Specifications X

1159 mm

Specifications Y

466 mm

Specifications Z At Pn 10

52 mm

Specifications Z At Pn 16

63 mm

Specifications Z At Pn 6

44 mm
