Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
SKU:VAL-a0e62b
Premium Series EVTLS Ductile Iron Butterfly Valve - DN50, PN16, Bare Shafted, DIN Compliant
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
$189.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

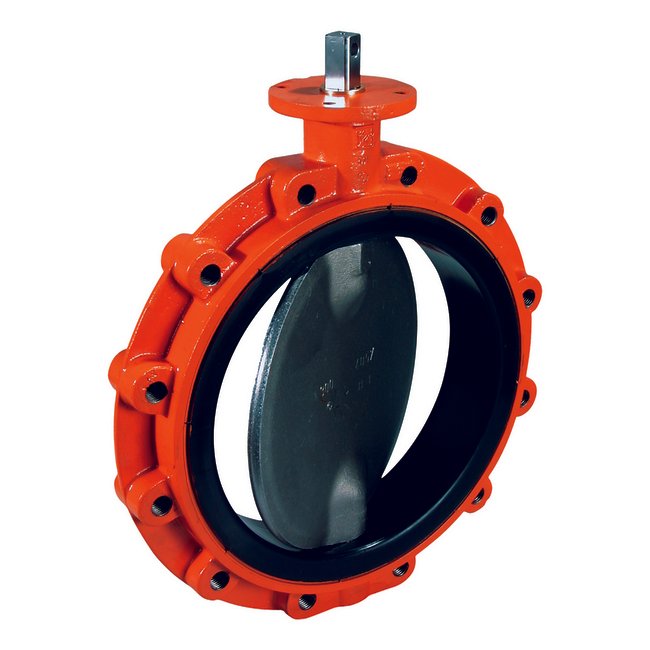

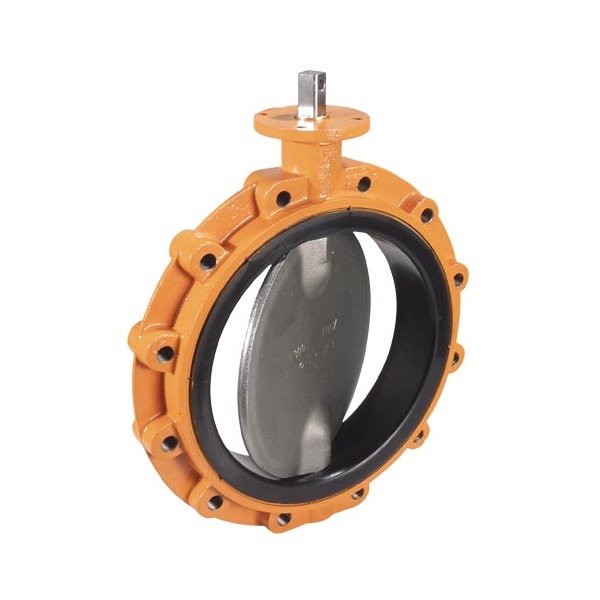

The Series EVTLS Bare Shafted Ductile Iron Lug Type DIN Butterfly Valve from Wouter Witzel Eurovalve combines precision engineering with durability. This valve, designed for DN50 - 2" | 50 mm size and PN16 rating, offers versatile applications in isolating and regulating flow. Constructed with high-quality materials like Ductile Iron body, Aluminum Bronze shaft, and EPDM liner, it ensures longevity and performance. With compliance to DIN standard and a range of certifications including ABS, DNV, UL, and more, this valve meets stringent industry requirements. Suitable for both consumer and institutional buyers seeking reliability and efficiency.
Ready to Grow Without Cash Flow Constraints?

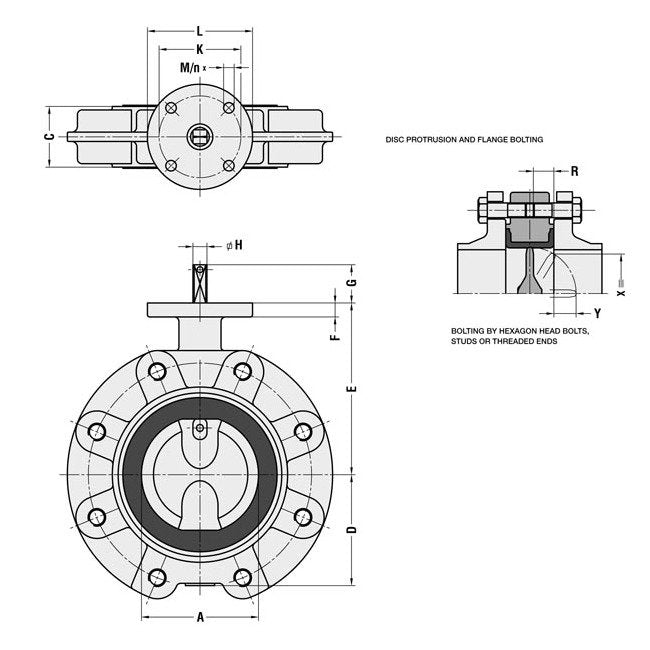

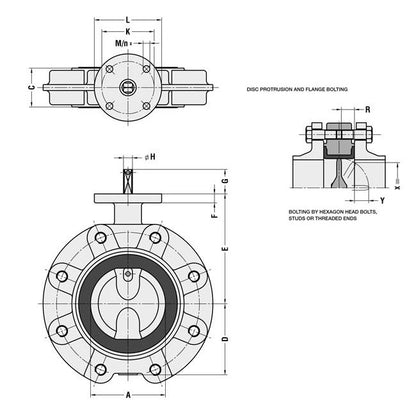

Product Specifications
Specifications A
50 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
100 mm
Specifications C
43 mm
Specifications D
63 mm
Specifications E
118 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
10 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
20 mm
Specifications R Min
17 mm
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN50 - 2" | 50 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
8.0 kg
Specifications X
25 mm
Specifications Y
4 mm
