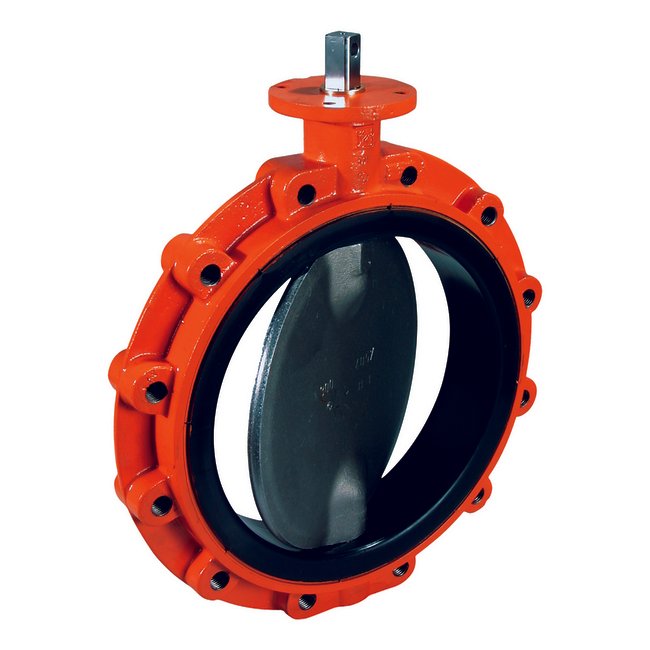

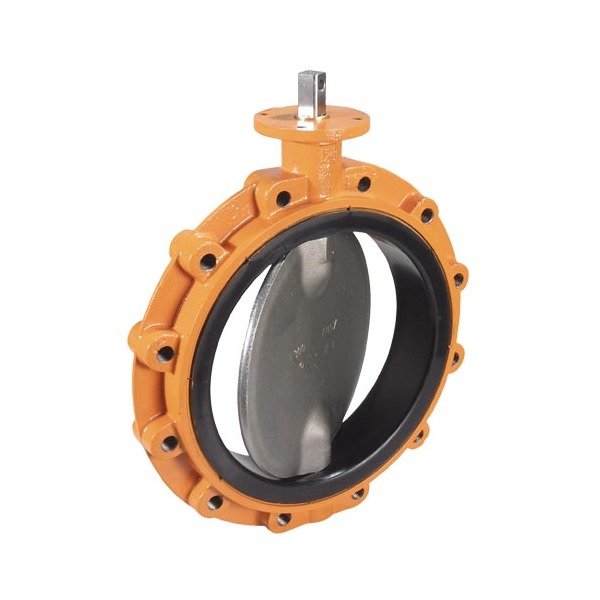

Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
SKU:VAL-fdb670
Premium DN250 Ductile Iron Butterfly Valve for precise flow control. DIN standard compliant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
$299.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Eurovalve Series EVTLS Bare Shafted Ductile Iron Butterfly Valve is a premium choice for precise flow control. With a DN250 size and PN10 rating, this valve offers outstanding durability and reliability. Its Ductile Iron body, Stainless Steel shaft, and EPDM liner ensure long-term performance. Suitable for isolating and regulating functions, meeting stringent DIN standards.
Ready to Grow Without Cash Flow Constraints?

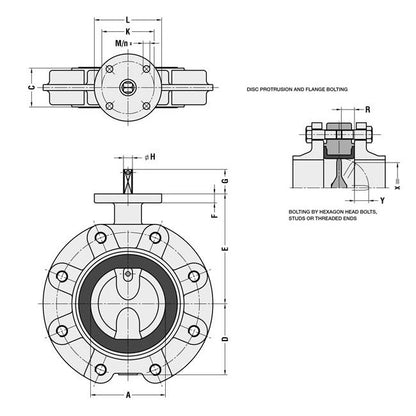

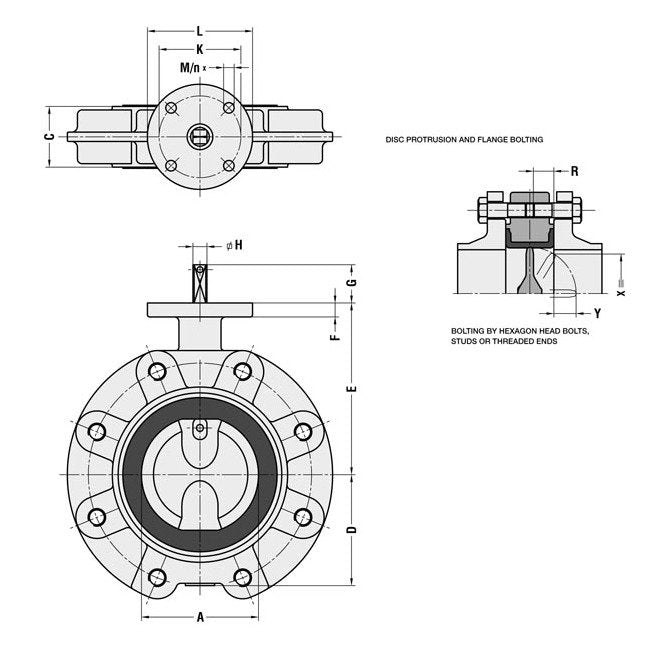

Product Specifications
Specifications A
250 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
315 mm
Specifications C
68 mm
Specifications D
194 mm
Specifications E
245 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications R Max
33 mm
Specifications R Min
28 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN250 - 10" | 250 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
28.0 kg
Specifications X
241 mm
Specifications Y
91 mm
