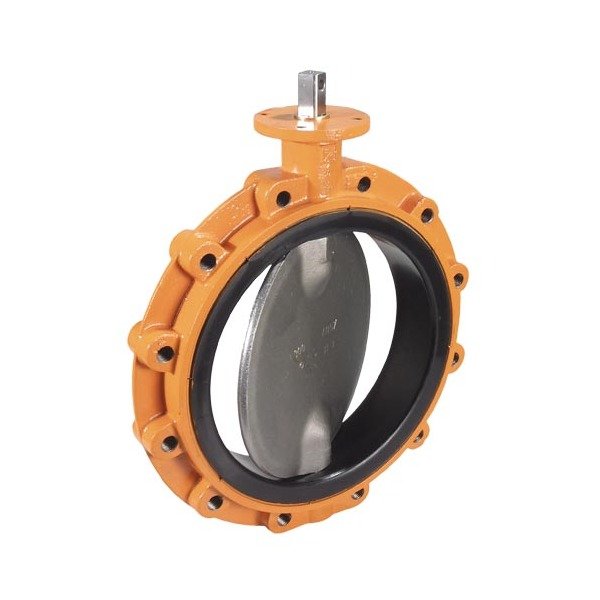

Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lever Operated Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lever Operated Butterfly Valve
SKU:VAL-61dee4
Reliable Wouter Witzel Eurovalve DN150 PN16 Butterfly Valve with ductile iron body & lever actuation.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lever Operated Butterfly Valve
$589.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lever Operated Butterfly Valve
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Eurovalve Series EVTLS Lever Operated Butterfly Valve in DN150 size and PN16 pressure rating is a versatile valve suitable for isolating and regulating applications. Crafted from high-quality ductile iron and featuring lever actuation, this valve ensures reliable performance and durability. With approvals from ABS, BV, DNV, and other reputable bodies, this valve meets stringent industry standards, making it ideal for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

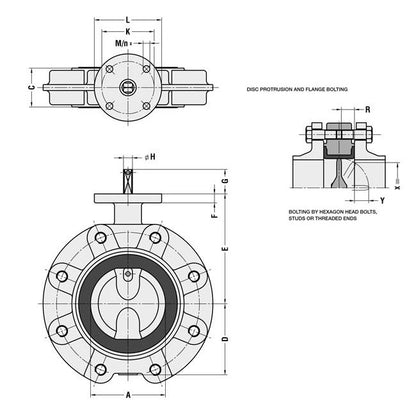

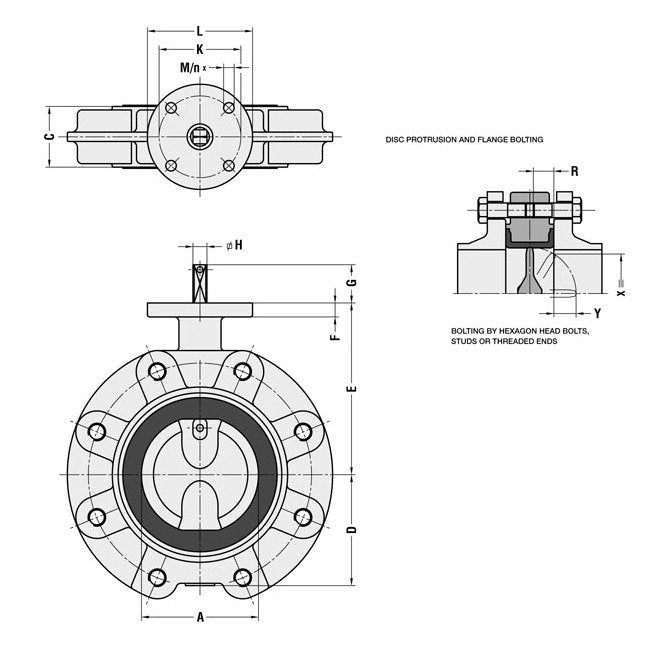

Specifications A
150 mm
Specifications Actuation Possibilities
Lever
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
210 mm
Specifications C
56 mm
Specifications D
133 mm
Specifications E
180 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
27 mm
Specifications R Min
23 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN150 - 6" | 150 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
20.0 kg
Specifications X
140 mm
Specifications Y
47 mm
