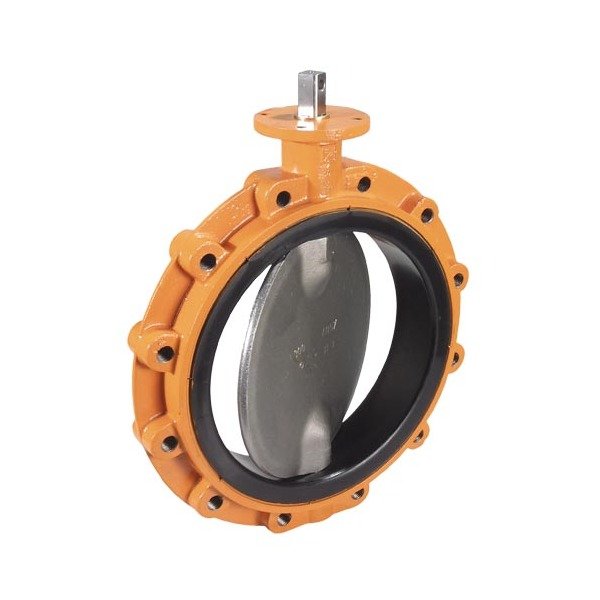

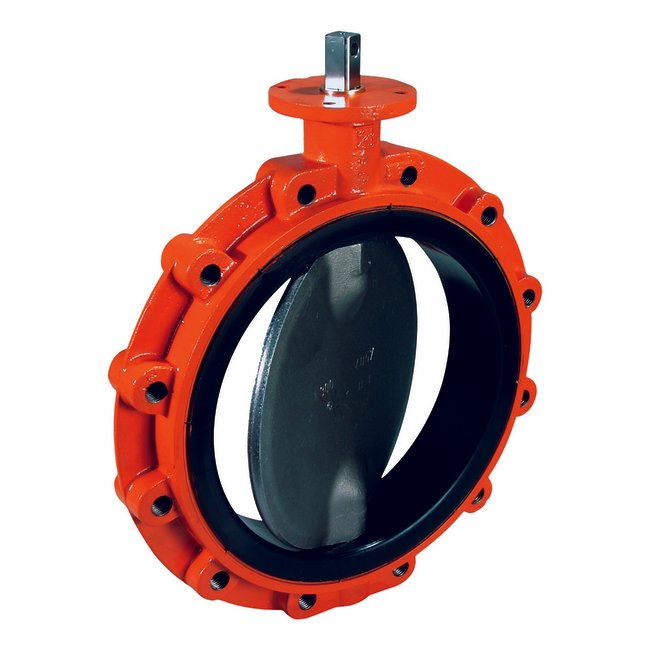

Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
SKU:VAL-1fdfdd
High-quality Wouter Witzel Eurovalve Series EVTLS Ductile Iron Butterfly Valve for reliable flow control in institutional settings.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Eurovalve Series EVTLS Bare Shafted Ductile Iron Lug Butterfly Valve in DN600 size offers exceptional performance in both isolating and regulating valve functions. Crafted from ductile iron with a stainless steel shaft, this valve ensures durability and reliability. With approvals from ABS, BV, UL, and more, it meets stringent industry standards. Ideal for institutional applications requiring PN10 shut off pressure and DIN standard compliance.
Ready to Grow Without Cash Flow Constraints?

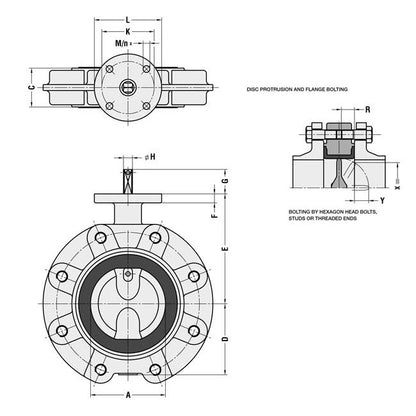

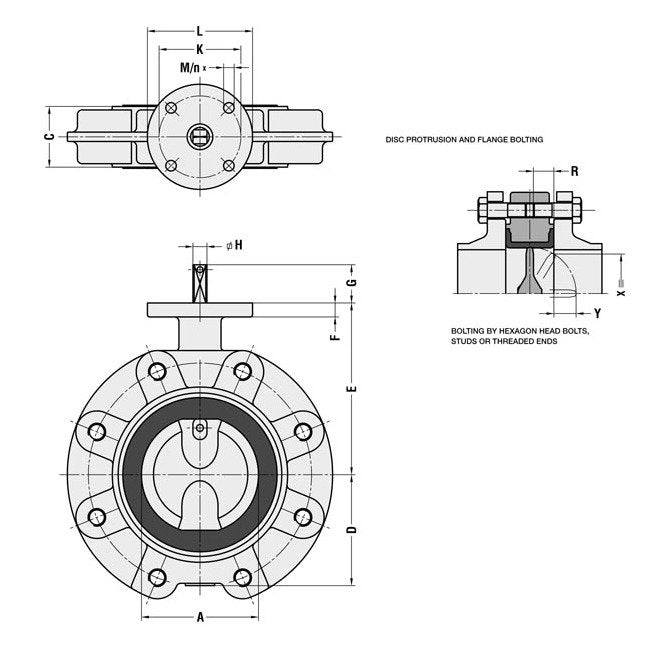

Product Specifications
Specifications A
586 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
672 mm
Specifications C
154 mm
Specifications D
426 mm
Specifications E
510 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10
Specifications G
50 mm
Specifications H Diameter
40 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications R Max At Cl 150
75 mm
Specifications R Max At Pn 10
75 mm
Specifications R Max At Pn 16
75 mm
Specifications R Max At Pn 6
75 mm
Specifications R Min At Cl 150
73 mm
Specifications R Min At Pn 10
67 mm
Specifications R Min At Pn 16
67 mm
Specifications R Min At Pn 6
61 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN600 - 24" | 600 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
205.0 kg
Specifications X
566 mm
Specifications Y
216 mm
