Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
SKU:VAL-a35487
High-performance DN150 PN16 Ductile Iron Lug Butterfly Valve for reliable isolating and regulating functions, with approvals from ABS, DNV, UL, and more.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
$279.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

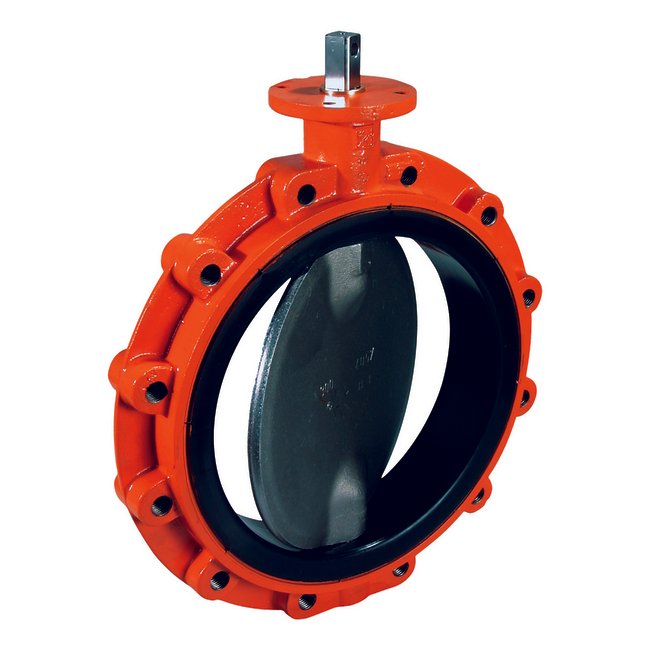

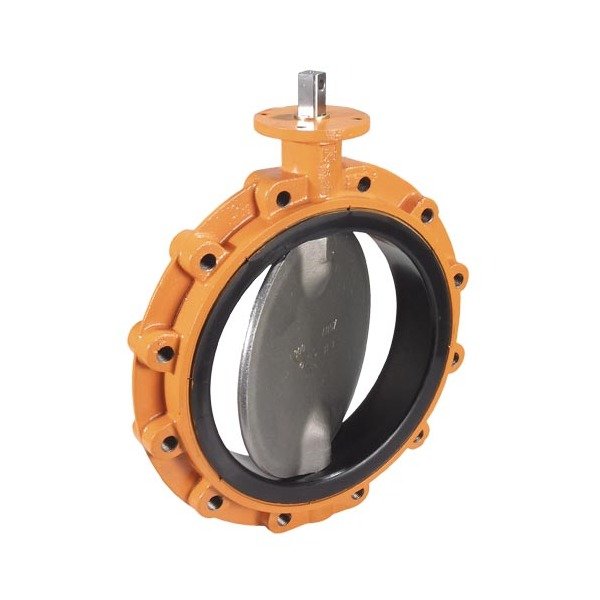

The Wouter Witzel Eurovalve Series EVTLS Ductile Iron Lug Butterfly Valve is a high-performance DN150 valve suitable for PN16 applications. Lever operated for easy operation, this valve functions as an isolating and regulating valve. Constructed with high-quality materials like GGG40 Ductile Iron, Stainless Steel shaft, and EPDM Liner, it ensures durability and reliable performance. With compliance to DIN standard, multiple valve shut off pressure options, and approvals from ABS, DNV, UL, and more, this valve meets stringent industry standards for institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

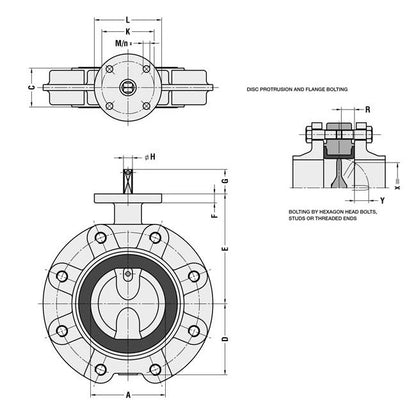

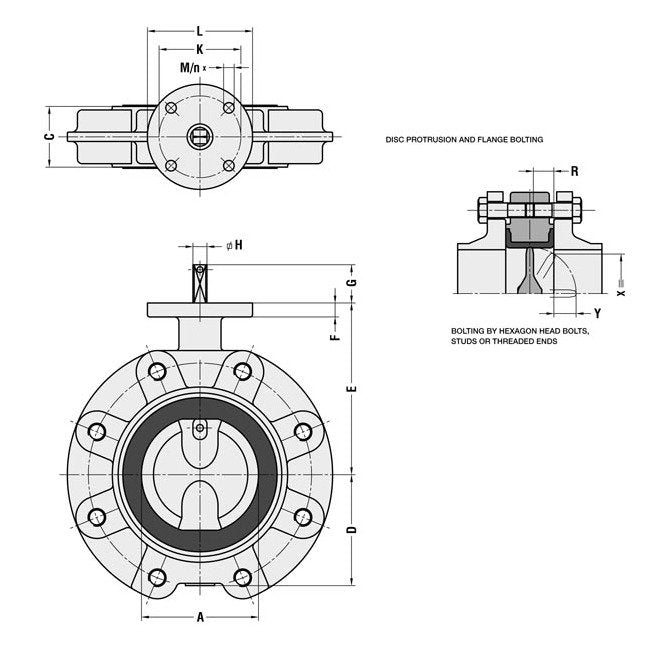

Specifications A
150 mm
Specifications Actuation Possibilities
Lever
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
210 mm
Specifications C
56 mm
Specifications D
133 mm
Specifications E
180 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
27 mm
Specifications R Min
23 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN150 - 6" | 150 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
20.0 kg
Specifications X
140 mm
Specifications Y
47 mm
