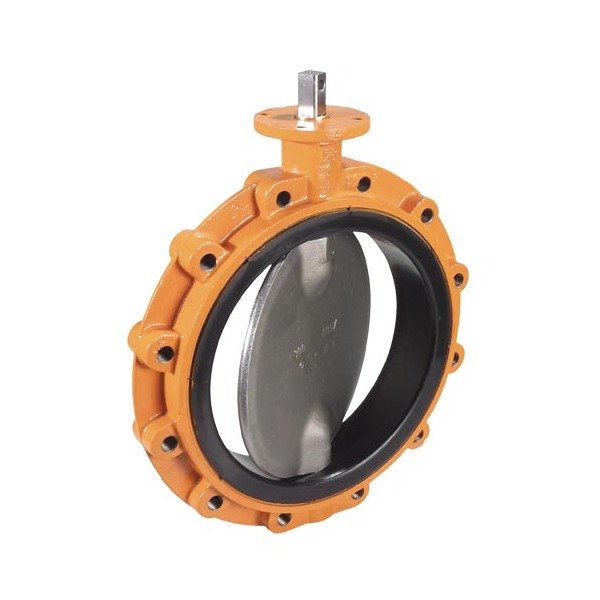

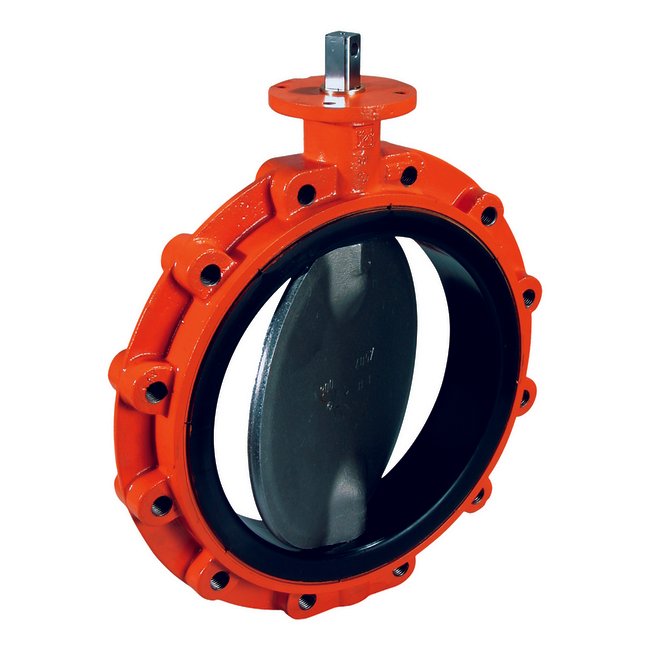

Wouter Witzel Eurovalve Series EVTLS Gear Operated Ductile Iron Lug Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Gear Operated Ductile Iron Lug Butterfly Valve
SKU:VAL-deeb26
Highly durable Wouter Witzel Eurovalve EVTLS Ductile Iron Butterfly Valve with gear operation and superior performance.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Gear Operated Ductile Iron Lug Butterfly Valve
$649.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Gear Operated Ductile Iron Lug Butterfly Valve
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Eurovalve Series EVTLS Gear Operated Ductile Iron Lug Butterfly Valve in DN350 size is a versatile and reliable valve suitable for various applications. Crafted with precision using high-quality ductile iron material, this valve ensures durability and efficient performance. With features like gear operation, isolating and regulating valve functions, and a sturdy stainless steel shaft, this valve meets stringent industry standards for quality and functionality. Ideal for both consumer and institutional buyers seeking a dependable valve solution.
Ready to Grow Without Cash Flow Constraints?

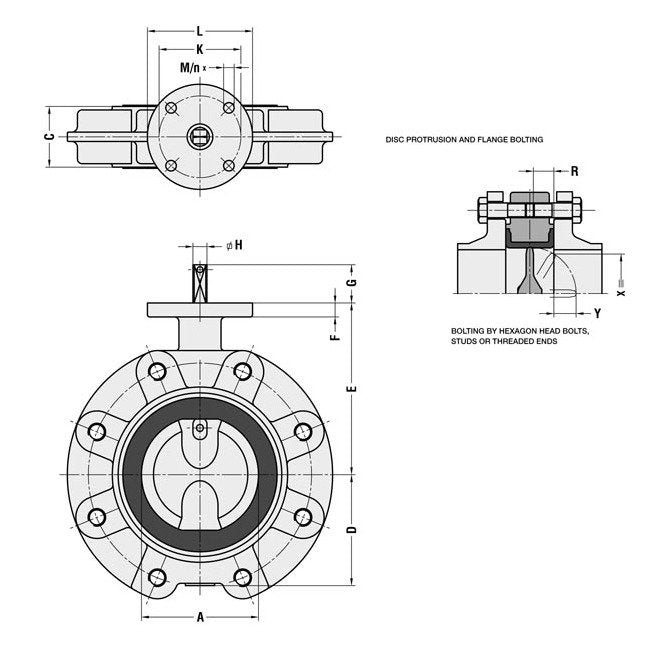

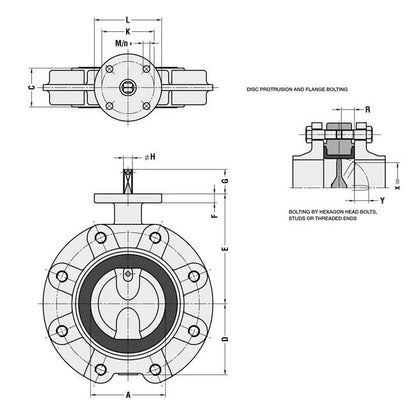

Product Specifications
Specifications A
336 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
405 mm
Specifications C
78 mm
Specifications D
256 mm
Specifications E
315 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications R Max At Cl 150
38 mm
Specifications R Max At Pn 10
38 mm
Specifications R Max At Pn 16
38 mm
Specifications R Max At Pn 6
38 mm
Specifications R Min At Cl 150
34 mm
Specifications R Min At Pn 10
27 mm
Specifications R Min At Pn 16
30 mm
Specifications R Min At Pn 6
23 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN350 - 14" | 350 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
50.0 kg
Specifications X
327 mm
Specifications Y
129 mm
