Wouter Witzel Eurovalve Series EVTLS Lever-Operated Ductile Iron Butterfly Valve
Wouter Witzel Eurovalve Series EVTLS Lever-Operated Ductile Iron Butterfly Valve
SKU:VAL-9e30d8
Premium Wouter Witzel Eurovalve DN50 PN16 Lever-Operated Butterfly Valve for precise fluid control.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Wouter Witzel Eurovalve Series EVTLS Lever-Operated Ductile Iron Butterfly Valve
$199.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Eurovalve Series EVTLS Lever-Operated Ductile Iron Butterfly Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

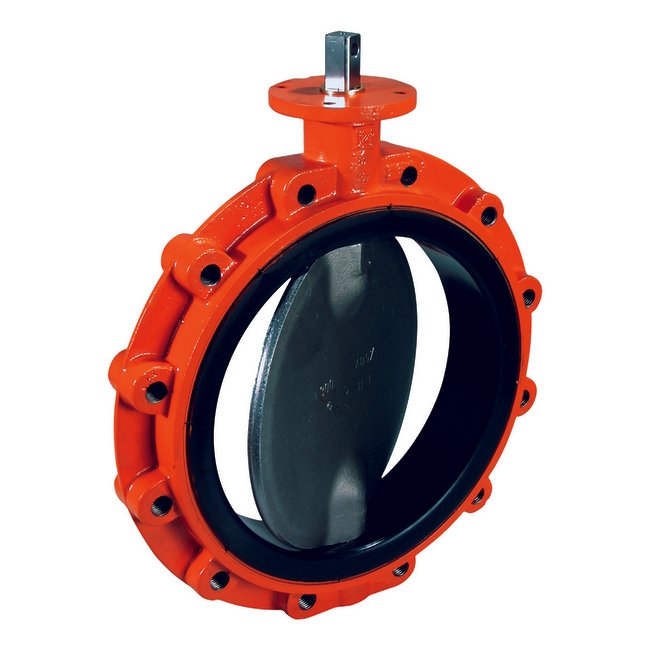

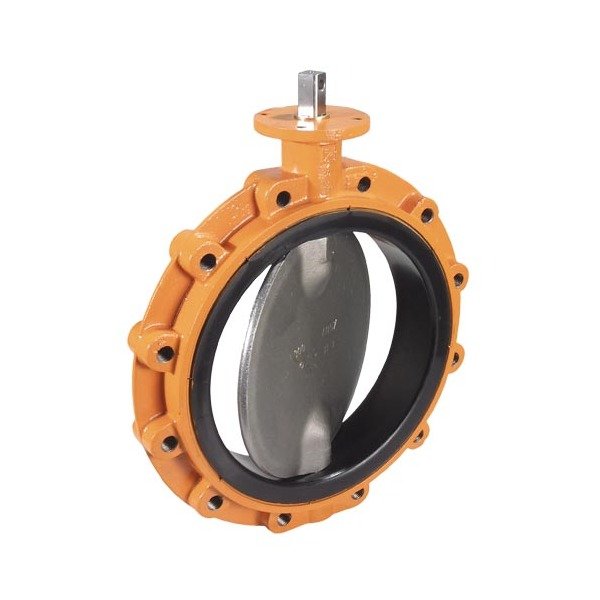

The Wouter Witzel Eurovalve Series EVTLS Lever-Operated Ductile Iron Butterfly Valve is designed for precision control and reliable performance. This valve, with a size of DN50 (2") and PN16 rating, features a sturdy ductile iron body suitable for various applications. It offers exceptional shut-off pressure of up to 16 bar, making it ideal for isolating and regulating fluid flow. The valve's construction includes high-quality materials like EPDM liner, ensuring durability and resistance to corrosion. With ISO 5211 mounting and lever actuation, it provides ease of operation for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

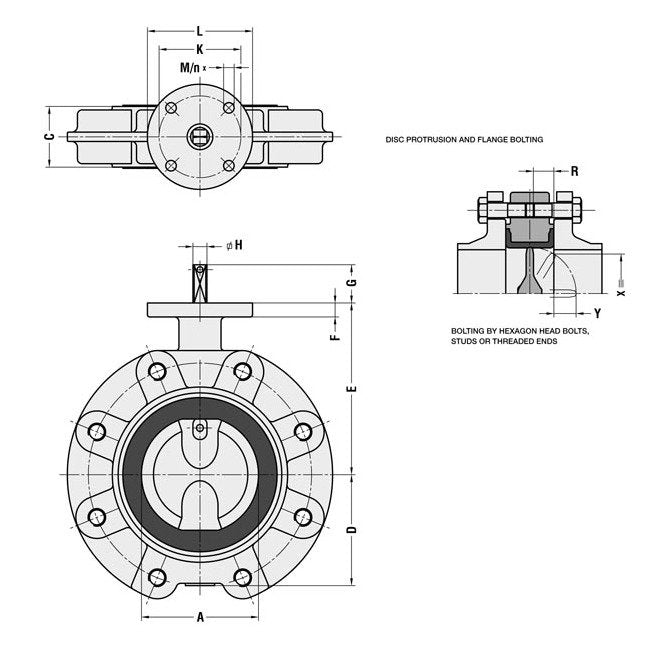

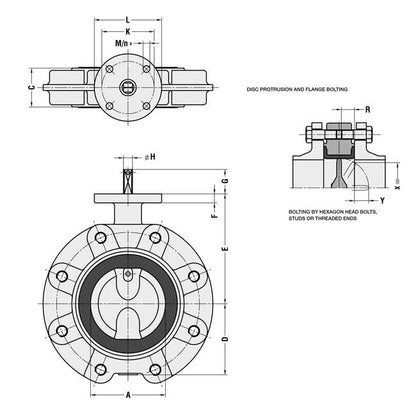

Specifications A
50 mm
Specifications Actuation Possibilities
Lever
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
100 mm
Specifications C
43 mm
Specifications D
63 mm
Specifications E
118 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
10 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
20 mm
Specifications R Min
17 mm
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN50 - 2" | 50 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
8.0 kg
Specifications X
25 mm
Specifications Y
4 mm
