Wouter Witzel EVFS Double Flanged Butterfly Valve

Wouter Witzel EVFS Double Flanged Butterfly Valve

VAL-e0f157

Reliable Wouter Witzel EVFS Butterfly Valve for industrial applications. Bi-directional tight shut off, multiple actuation options, and various approvals.

$2,500.00
$2,500.00
Sale

Initiate Order

Wouter Witzel EVFS Double Flanged Butterfly Valve

Wouter Witzel EVFS Double Flanged Butterfly Valve

$2,500.00

Quantity: 1

Claim Your Seller Account

Wouter Witzel EVFS Double Flanged Butterfly Valve

Wouter Witzel EVFS Double Flanged Butterfly Valve

$2,500.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Wouter Witzel EVFS Double Flanged Butterfly Valve is a high-performance valve designed for industrial applications. With a durable construction featuring materials like GG25 Cast Iron and Duplex Stainless Steel, this valve ensures reliable operation under diverse conditions. It offers manual, electric, pneumatic, and hydraulic actuation options, meeting ISO 5752 / EN 558 standards. The valve's bi-directional tight shut off, various available types approvals like DVGW and ABS, and compatibility with ANSI, JIS, and PN flange connections make it ideal for critical isolating and regulating tasks in institutional settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

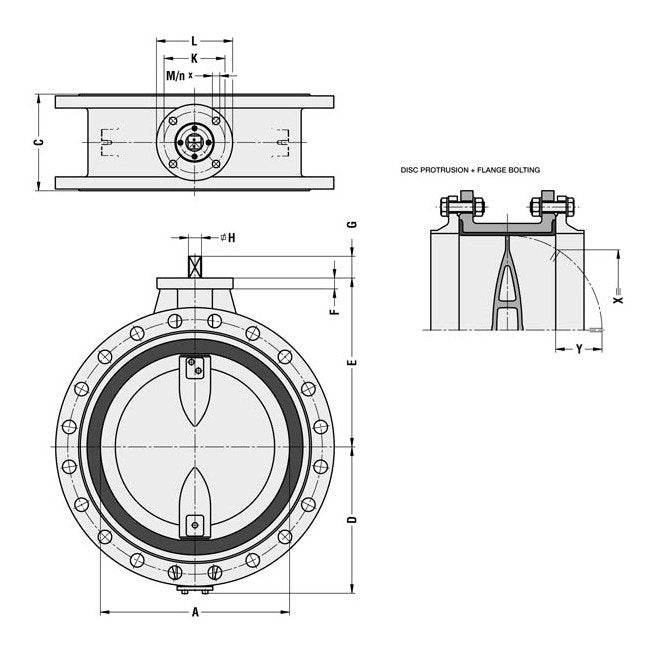

Product Specifications

Specifications A
1586 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications C
600 mm
Specifications D
1096 mm
Specifications E
1079 mm
Specifications F
50 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
100 mm | 120 mm
Specifications H Diameter
90 mm | 105 mm
Specifications Iso 5211
F35 | F40
Specifications K
356 mm | 406 mm
Specifications L
475 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
31 mm | 37 mm
Specifications N Number Of Holes
8
Specifications Size
DN1600 - 64" | 1600 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
2500.0 kg
Specifications X
1469 mm
Specifications Y
493 mm
