The Wouter Witzel EVMS Mono Flanged Short Valve is a high-quality concentric butterfly valve designed to meet ISO 5752/EN 558 standards. Available in sizes DN350 to DN1000 (14'' to 40''), this valve offers versatile actuation options including manual, electric, pneumatic, and hydraulic, catering to diverse operational needs. With top flange compatibility per ISO 5211 and material options ranging from ductile iron to stainless steel, bronze, and more, this valve ensures durability and efficient performance. Designed for isolation and regulation tasks, it boasts a robust construction, leakage rate adherence to ISO 5208, and various type approvals such as DNV, ABS, GL, and more.

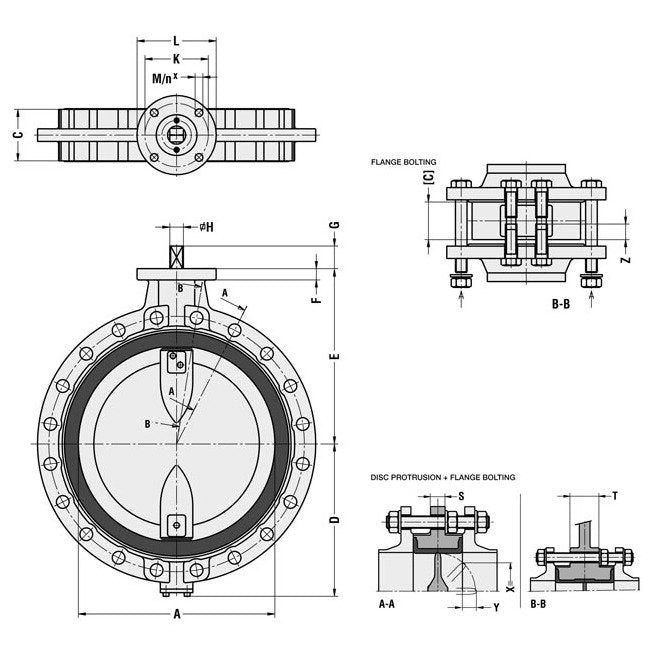

Product Specifications
Specifications A
886 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
980 mm
Specifications C
203 mm
Specifications D
635 mm
Specifications E
690 mm
Specifications F
30 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
90 mm
Specifications H Diameter
60 mm
Specifications Iso 5211
F25
Specifications K
254 mm
Specifications L
300 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
8
Specifications S
40 mm
Specifications Size
DN900 - 36"
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications T
190 mm
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
500.0 kg
Specifications X
863 mm
Specifications Y
342 mm
Specifications Z At Pn 10
52 mm
Specifications Z At Pn 16
59 mm
Specifications Z At Pn 6
Through Bolting
