Wouter Witzel EVMS Mono Flanged Short Valve

Name: Wouter Witzel EVMS Mono Flanged Short Valve
Brand: World Wide Metric, Inc.
SKU: VAL-31975b
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-31975b

Experience top-tier reliability with the Wouter Witzel EVMS Mono Flanged Short Valve, built to meet stringent standards in fluid control systems.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel EVMS Mono Flanged Short Valve is a top-tier solution offering precision and reliability in fluid control systems. Compliant with ISO 5752/EN 558 standards, this valve features a durable construction with various material options including Bronze RG10, Carbon Steel, GG25 Cast Iron, GGG40 Ductile Iron, and Stainless Steel. With actuation possibilities such as Manual, Electric, Pneumatic, and Hydraulic, it ensures versatile functionality fitting isolating and regulating valve needs. Designed for ease of installation and maintenance, this valve is ideal for institutional settings requiring bi-directional tight shut off and high-quality performance.

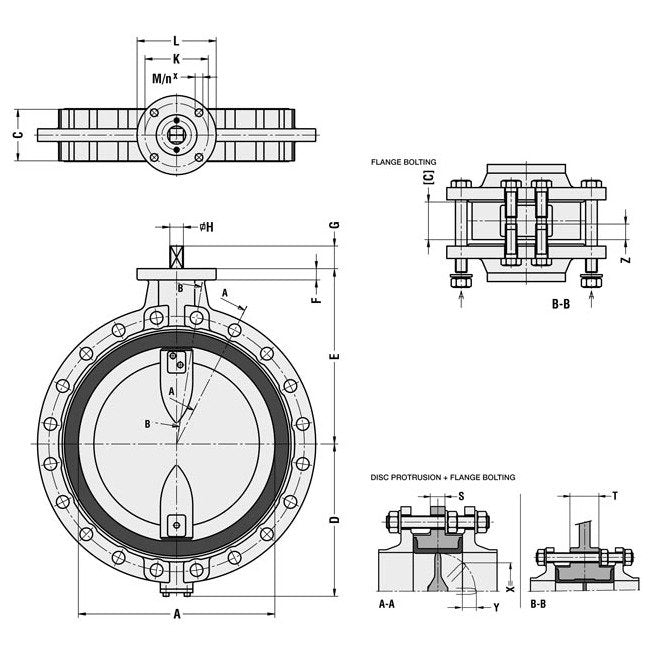

Product Specifications

Specifications A

686 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | DNV | FM | GL | NKK | RIN | RMRS

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

776 mm

Specifications C

165 mm

Specifications D

480 mm

Specifications E

560 mm

Specifications F

25 mm

Specifications Flange Connections

DIN PN 10 | DIN PN 6

Specifications G

60 mm

Specifications H Diameter

46 mm

Specifications Iso 5211

F16

Specifications K

165 mm

Specifications L

210 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

21 mm

Specifications N Number Of Holes

Specifications S

37 mm

Specifications Size

DN700 - 28"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications T

115 mm

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

315.0 kg

Specifications X

666 mm

Specifications Y

261 mm

Specifications Z At Pn 16

60 mm

Specifications Z At Pn 610

Through Bolting
