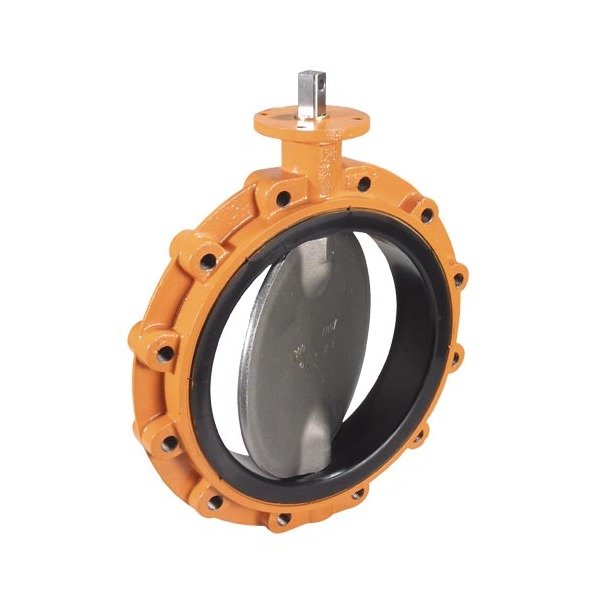

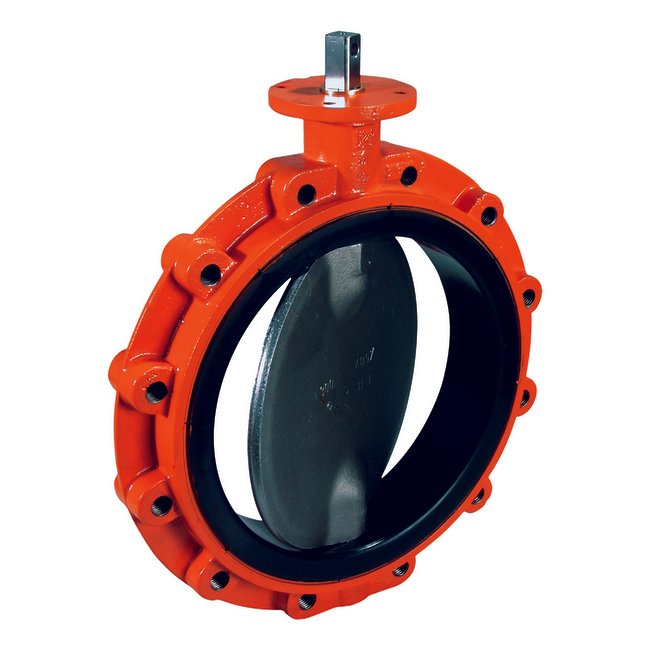

Wouter Witzel EVTLS Ductile Iron Butterfly Valve
Wouter Witzel EVTLS Ductile Iron Butterfly Valve
SKU:VAL-1dfdbc
Wouter Witzel EVTLS DN65 PN16 Butterfly Valve - Reliable flow control, durable ductile iron construction, compliant with DIN standards & industry approvals.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wouter Witzel EVTLS Ductile Iron Butterfly Valve
$299.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel EVTLS Ductile Iron Butterfly Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel EVTLS Lever Operated Butterfly Valve in DN65 size and PN16 rating is a robust solution for industrial applications requiring precise flow control. Constructed from high-quality ductile iron, this valve ensures durability and reliability. Featuring a lever actuation system, EPDM liner, and stainless steel shaft, it offers excellent shut-off pressure up to 16 bar. Compliant with DIN standards and approved by ABS, DNV, UL, and more, this valve guarantees performance excellence and regulatory adherence.
Ready to Grow Without Cash Flow Constraints?

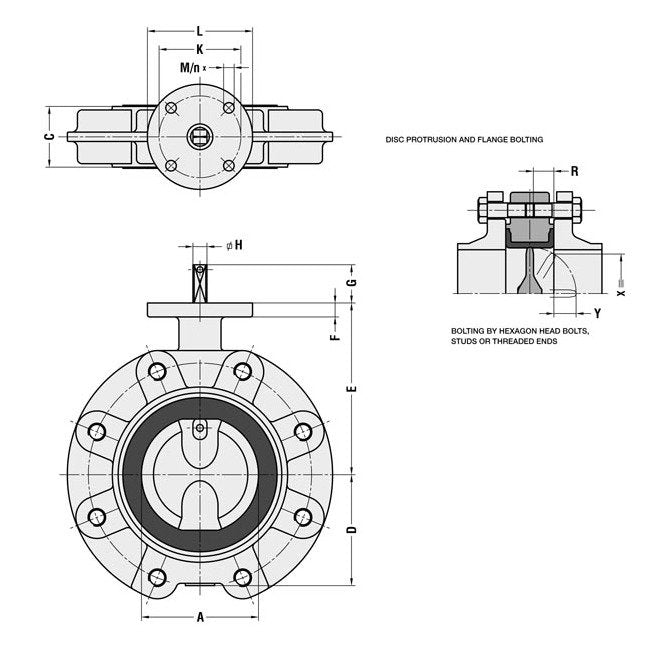

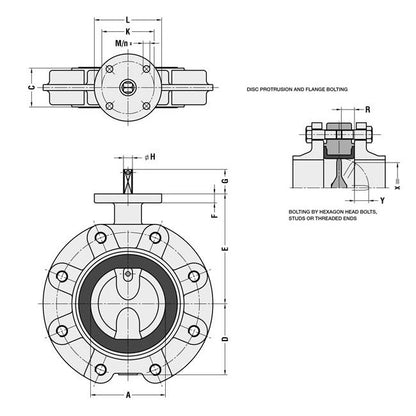

Product Specifications
Specifications A
65 mm
Specifications Actuation Possibilities
Lever
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
115 mm
Specifications C
46 mm
Specifications D
71 mm
Specifications E
126 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
10 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R Max
22 mm
Specifications R Min
19 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN65 - 2-1/2" | 65 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
9.0 kg
Specifications X
46 mm
Specifications Y
10 mm
