Wouter Witzel Series EVFL Double Flanged Long Valve
Wouter Witzel Series EVFL Double Flanged Long Valve
SKU:VAL-d7cb6f
Premium double flanged long valve with rubber lining, ISO standards compliant, ideal for isolation and regulation in industrial settings.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Wouter Witzel Series EVFL Double Flanged Long Valve
$2,499.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Series EVFL Double Flanged Long Valve
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Series EVFL Double Flanged Long Valve is a high-quality concentric butterfly valve designed for exceptional performance in industrial applications. With vulcanized rubber lining and a double flanged long body, this valve offers durability and reliability. It features flange connections compatible with ANSI, JIS, and PN standards, and comes in a size range of DN40 - 2000. Available in manual, electric, pneumatic, and hydraulic actuation options, this valve ensures smooth operation and precise control. The valve meets ISO 5752/EN 558 standards and is suitable for both isolating and regulating functions.
Ready to Grow Without Cash Flow Constraints?

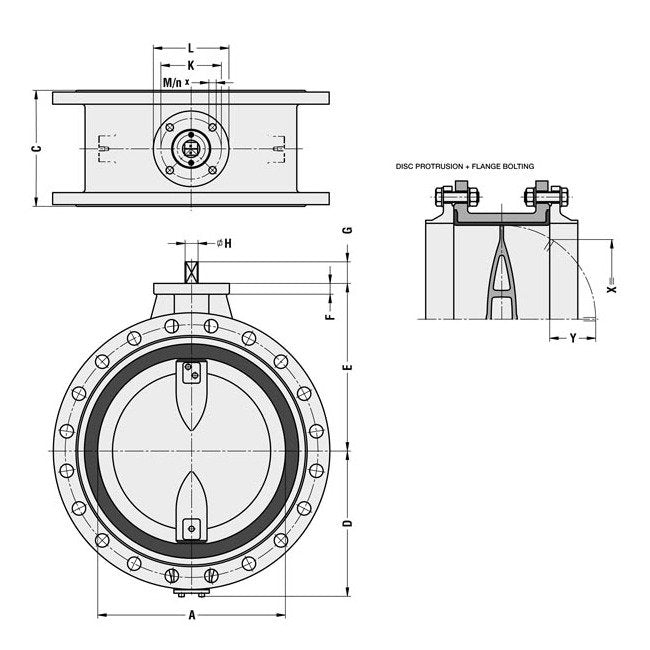

Product Specifications
Specifications A
986 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DVGW | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications C
470 mm
Specifications D
870 mm
Specifications E
855 mm
Specifications F
35 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
85 mm
Specifications H Diameter
75 mm
Specifications Iso 5211
F30 | F35
Specifications K
298 mm
Specifications L
415 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
21 mm | 31 mm
Specifications N Number Of Holes
8
Specifications Size
DN1200 - 48" | 1200 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
1600.0 kg
Specifications X
1005 mm
Specifications Y
315 mm
