Wouter Witzel Series EVFL Long Valve
Wouter Witzel Series EVFL Long Valve
SKU:VAL-1fbec4
Versatile Wouter Witzel Series EVFL Long Valve for efficient flow control in industrial settings.
Regular price
$800.00
Regular price
Sale price
$800.00
Unit price
per
Initiate Order
Wouter Witzel Series EVFL Long Valve
$800.00
Quantity: 1
Claim Your Seller Account
Wouter Witzel Series EVFL Long Valve
$800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

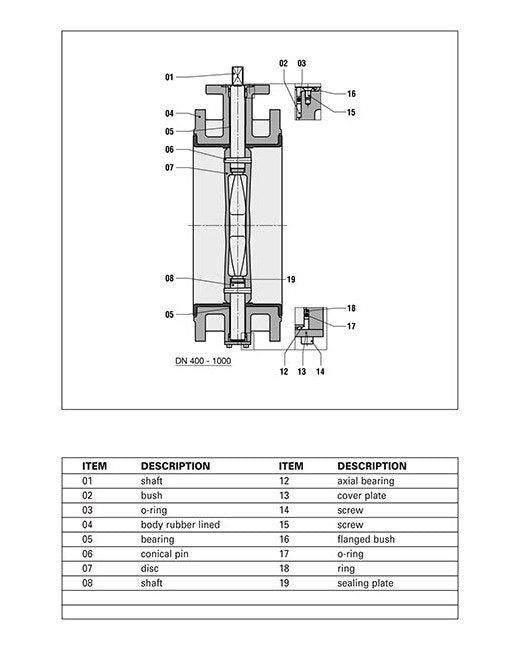

The Wouter Witzel Series EVFL Double Flanged Long Valve is a reliable solution for industrial applications. With a concentric butterfly design and multiple material options for the body, disc, and shaft, this valve offers versatility and durability. It features a top flange according to ISO 5211 for easy actuation and comes in sizes ranging from DN40 to 2000. Suitable for manual, electric, pneumatic, or hydraulic actuation, this valve ensures efficient flow control and tight shut off thanks to ISO 5208 leakage rate A compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
436 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
330 mm
Specifications D
334 mm
Specifications E
388 mm
Specifications F
25 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN450 - 18" | 450 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
200.0 kg
Specifications X
285 mm
Specifications Y
53 mm
