Wouter Witzel Series EVFS Double Flanged Short Valve

Name: Wouter Witzel Series EVFS Double Flanged Short Valve
Brand: World Wide Metric, Inc.
SKU: VAL-249c03
Price: 2899.99 USD
Availability: OutOfStock

SKU:VAL-249c03

Premium Wouter Witzel Series EVFS Butterfly Valve: ISO-compliant, reliable shut off & regulation, multiple actuation options.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wouter Witzel Series EVFS Double Flanged Short Valve is a top-quality concentric butterfly valve designed for critical industrial applications. With a vulcanized rubber lining and compliance with ISO 5752/EN 558 standards, this valve ensures optimal performance and durability. Available in sizes ranging from DN40 to DN2000, it offers versatile installation options and can handle design pressures of up to 16 Bar. Choose from manual, electric, pneumatic, or hydraulic actuation methods and various material options including stainless steel, carbon steel, and bronze RG10. Ideal for isolating and regulating functions, this valve guarantees bi-directional tight shut off per ISO 5208 standards.

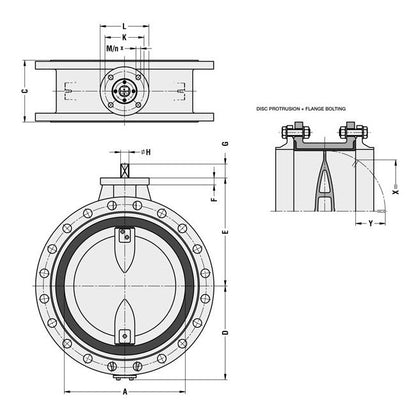

Product Specifications

Specifications A

1484 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications C

600 mm

Specifications D

1037 mm

Specifications E

1029 mm

Specifications F

50 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6

Specifications G

100 mm | 120 mm

Specifications H Diameter

90 mm | 105 mm

Specifications Iso 5211

F35 | F40

Specifications K

356 mm | 406 mm

Specifications L

475 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

31 mm | 37 mm

Specifications N Number Of Holes

Specifications Size

DN1500 - 60" | 1500 mm

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

2100.0 kg
